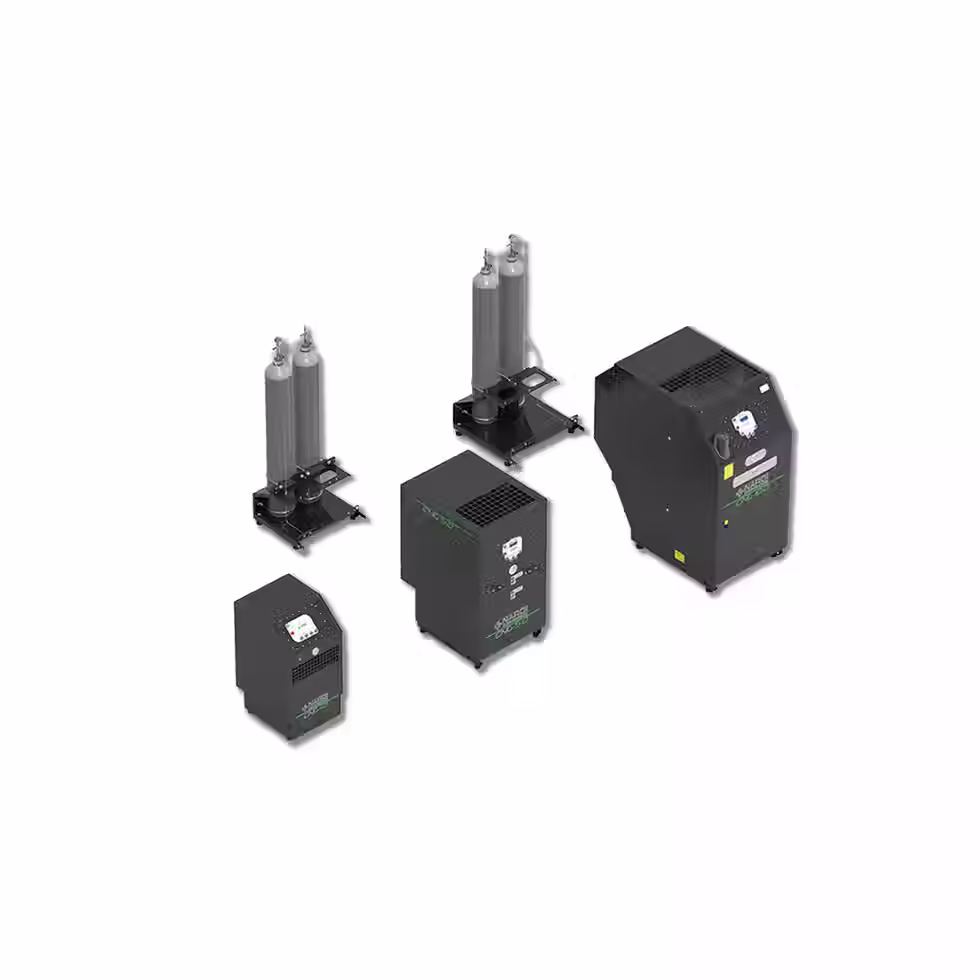

CNG 7.5 Compressor
SKU CNG 7.5
Price
$0.00
The NARDI CNG compressor range is ATEX ZONE II certified, specifically designed to compress methane and biomethane by intaking gas at low pressure directly from domestic or industrial supply lines. The gas can then be stored or used for direct vehicle refueling via a hose.
Built with premium-quality materials, these compressors offer a robust and safe solution, reinforced by a sophisticated valve system that ensures reliability and maximum safety. Every unit is equipped with the NARDI control panel, providing user-friendly operation and streamlined maintenance over time.
The CNG 7.5 model is the second largest in this series, delivering high flow rates of 450 LPM (15.9 CFM). This unit come with the MX frame, making it ideal for industrial applications and high-pressure gas storage.
High-Capacity Multi-Vehicle Refueling
✔️ Supports simultaneous refueling of up to 8 vehicles
Key Features & Safety Systems
✅ ATEX Certified for Zone II environments – Ensuring compliance with strict safety standards.
✅ Comprehensive mechanical and electronic safety measures – Advanced control software for secure operation.
✅ Intelligent electronic monitoring & alarms – Detects and signals any malfunctions, including external failures (e.g., hose rupture during refueling).
✅ Impurity discharge system – Rear vent valve with gas recovery to minimize waste.
✅ Versatile accessory options – Including fast-fill and storage systems for customized solutions.
✅ Advanced electronic board customization – Featuring data monitoring, parameter adjustments, and MODBUS communication for centralized multi-compressor control.
✅ Exceptional durability – Over 20,000 hours of operation with proper maintenance.
Request a Quote for More Information
Click the REQUEST A QUOTE button to discuss your specific needs and get detailed information on available product options. Certain compressors and compressor configurations are manufactured to order at the Nardi Compressori headquarters in Italy. Once ordered, the Nardi Americas team will notify you with an estimated delivery date.
[Click to Download CNG Catalog]
Quantity
Snail trail
Name
SKU
Description
Title
Description
SKU
Title
SKU
Title
Technical Specifications
Model | Dryer | Charging Rate | Maximum Pressure | Air Intake | Stages | Engine / Motor | Sound (dB) | Weight | Dimensions |
|---|---|---|---|---|---|---|---|---|---|
Extreme 4D 90L 3.0 3Ø | D600 | -- | 145 psi | 21.2 CFM | 4 | 3HP · 3Ø | 73 | 170 lbs | 43.3L x 21.3W x 31.9H" |
Extreme 4D 90L 3.0 1Ø | D600 | -- | 145 psi | 17 CFM | 4 | 3HP · 1Ø | 73 | 167 lbs | 43.3L x 21.3W x 31.9H" |
Extreme 4V 90L 3.0 3Ø | No | -- | 145 psi | 21.2 CFM | 4 | 3HP · 3Ø | 73 | 170 lbs | 43.3L x 21.3W x 31.9H" |
Extreme 4V 90L 3.0 1Ø | No | -- | 145 psi | 17 CFM | 4 | 3HP · 1Ø | 73 | 147 lbs | 43.3L x 21.3W x 31.9H" |
Extreme 2D 90L 3.0 3Ø | D600 | -- | 145 psi | 21.2 CFM | 4 | 3HP · 3Ø | 77 | 170 lbs | 29.1L x 17.7W x 55.1H" |
Extreme 2D 90L 3.0 1Ø | D600 | -- | 145 psi | 17 CFM | 4 | 3HP · 1Ø | 77 | 170 lbs | 29.1L x 17.7W x 55.1H" |
Extreme 2V 90L 3.0 3Ø | No | -- | 145 psi | 21.2 CFM | 4 | 3HP · 3Ø | 73 | 152 lbs | 25.1L x 17.7W x 55.1H" |
Extreme 2V 90L 3.0 1Ø | No | -- | 145 psi | 17 CFM | 4 | 3HP · 1Ø | 73 | 152 lbs | 25.1L x 17.7W x 55.1H" |
Extreme SD 90L 2.5 | D400 | -- | 114 psi | 17 CFM | 4 | 2.5 HP · 1Ø | 62 | 340 lbs | 37.8L x 22.0W x 40.2H" |
Extreme SV 90L 2.5 | No | -- | 114 psi | 17 CFM | 4 | 2.5 HP · 1Ø | 62 | 340 lbs | 37.8L x 22.0W x 40.2H" |
Extreme SD 50L 2.0 | D400 | -- | 114 psi | 12.4 CFM | 2 | 2HP · 1Ø | 60 | 210 lbs | 33.5L x 19.7W x 32.3H" |
Extreme SD 50L 1.5 | D400 | -- | 114 psi | 8.5 CFM | 2 | 1.5HP · 1Ø | 59 | 199 lbs | 33.5L x 19.7W x 32.3H" |
Extreme SV 50L 2.0 | No | -- | 114 psi | 12.4 CFM | 2 | 2HP · 1Ø | 60 | 195 lbs | 29.3L x 19.7W x 32.3H" |
Extreme SV 50L 1.5 | No | -- | 114 psi | 8.5 CFM | 2 | 1.5HP · 1Ø | 59 | 183 lbs | 29.3L x 19.7W x 32.3H" |
Extreme SD 30L 2.0 | D400 | -- | 114 psi | 12.4 CFM | 2 | 2HP · 1Ø | 62 | 173 lbs | 28.0L x 17.3W x 29.9H" |
Extreme SD 30L 1.5 | D400 | -- | 114 psi | 8.5 CFM | 2 | 1.5HP · 1Ø | 61 | 165 lbs | 28.0L x 17.3W x 29.9H" |
Extreme SV 30L 2.0 | No | -- | 114 psi | 12.4 CFM | 2 | 2HP · 1Ø | 62 | 158 lbs | 25.6L x 17.3W x 29.9H" |
Extreme SV 30L 1.5 | No | -- | 114 psi | 8.5 CFM | 2 | 1.5HP · 1Ø | 61 | 150 lbs | 25.6L x 17.3W x 29.9H" |
Extreme 2V 50L 2HP | No | -- | 114 psi | 12.4 CFM | 2 | 2HP · 1Ø | 67 | 103 lbs | 22.8L x 16.9W x 38.6H" |
Extreme 2D SIL 25L 2.0 | D400 | -- | 114 psi | 1.2 CFM | 2 | 2HP · 1Ø | 67 | 106 lbs | 27.6L x 16.9W x 30.7H" |
Extreme 3D 50L 2.0 | Yes | 4.5 CFM @ 8 bar | 114 psi | 12.4 CFM | 2 | 2HP · 1Ø | 73 | 112 lbs | 33L x 17.3W x 26.8H" |
Extreme 3D 50L 1.5 | Yes | 3.5 CFM @ 8 bar | 114 psi | 8.5 CFM | 2 | 1.5HP · 1Ø | 72 | 105 lbs | 33L x 17.3W x 26.8H" |
Extreme 3V 50L 2.0 | No | 4.5 CFM @ 8 bar | 114 psi | 12.4 CFM | 2 | 2HP · 1Ø | 73 | 95 lbs | 33L x 12.2W x 26.8H" |
Extreme 3V 50L 1.5 | No | 3.5 CFM @ 8 bar | 114 psi | 8.5 CFM | 2 | 1.5HP · 1Ø | 72 | 88 lbs | 33L x 12.2W x 26.8H" |
Extreme 4D 90L 3HP | Yes | 8.8 CFM @ 8 bar | 145 psi | 21.2 CFM | 4 | 3HP · 3Ø | 73 | 170 lbs | 43.3L x 23.2W x 31.9H" |
Extreme 4D 90L 3HP | Yes | 6.7 CFM @ 8 bar | 145 psi | 17 CFM | 4 | 3HP · 1Ø | 73 | 167 lbs | 43.3L x 23.2W x 31.9H" |
Extreme 4V 90L 3HP | No | 8.8 CFM @ 8 bar | 145 psi | 21.2 CFM | 4 | 3HP · 3Ø | 73 | 170 lbs | 43.3L x 21.3W x 31.9H" |
Extreme 4V 90L 3HP | No | 6.7 CFM @ 8 bar | 145 psi | 17 CFM | 4 | 3HP · 1Ø | 73 | 147 lbs | 43.3L x 21.3W x 31.9H" |
Extreme 2D 90L 3HP | Yes | 8.8 CFM @ 8 bar | 145 psi | 21.2 CFM | 4 | 3HP · 3Ø | 73 | 170 lbs | 29.1L x 17.7W x 55.1H" |
Extreme 2D 90L 3HP | Yes | 6.7 CFM @ 8 bar | 145 psi | 17 CFM | 4 | 3HP · 1Ø | 73 | 170 lbs | 29.1L x 17.7W x 55.1H" |
Extreme 2V 90L 3HP | No | 8.8 CFM @ 8 bar | 145 psi | 21.2 CFM | 4 | 3HP · 3Ø | 73 | 152 lbs | 25.2L x 17.7W x 55.1H" |
Extreme 2V 90L 3HP | No | 6.7 CFM @ 8 bar | 145 psi | 17 CFM | 4 | 3HP · 1Ø | 73 | 152 lbs | 25.2L x 17.7W x 55.1H" |
Extreme Hookah 3 | No | -- | 145 psi | 9.2 CFM | 2 | 12V · 800W | 72 | 50 lbs | 16.1L x 15.7W x 15.7H" |
Extreme 3 30L 24V | No | -- | 145 psi | 8.8 CFM | 2 | 24V · 800W | 72 | 62 lbs | 27.6L x 11.8W x 23.6H" |
Extreme 3 30L 12V | No | -- | 145 psi | 8.8 CFM | 2 | 12V · 800W | 72 | 62 lbs | 27.6L x 11.8W x 23.6H" |
Extreme 3 7L 12V | No | -- | 145 psi | 8.8 CFM | 2 | 800W · 85A | 72 | 50 lbs | 16.1L x 15.7W x 15.7H" |
Extreme 3 7L 24V | No | -- | 145 psi | 8.8 CFM | 2 | 800W · 40A | 72 | 50 lbs | 16.1L x 15.7W x 15.7H" |
Extreme 2D 2.5HP | Yes | 6.7 CFM | 114 psi | 17 CFM | 2 | 2.5HP · 1Ø | 73 | 132 lbs | 23L x 16.9W x 32.7H" |
Extreme 2V 2.5HP | No | 6.7 CFM | 114 psi | 17 CFM | 2 | 2.5HP · 1Ø | 73 | 115 lbs | 18.1L x 16.9W x 32.7H" |
Extreme 2D 2.0HP | Yes | 4.5 CFM | 114 psi | 12.4 CFM | 2 | 2HP · 1Ø | 73 | 112 lbs | 23L x 16.9W x 32.7H" |
Extreme 2V 2.0HP | No | 4.5 CFM | 114 psi | 12.4 CFM | 2 | 2HP · 1Ø | 73 | 94 lbs | 18.1L x 16.9W x 32.7H" |
Extreme 2D 1.5HP | Yes | 3.5 CFM | 114 psi | 8.5 CFM | 2 | 1.5HP · 1Ø | 72 | 106 lbs | 23L x 16.9W x 32.7H" |
Extreme 2V 1.5HP | No | 3.5 CFM | 114 psi | 8.5 CFM | 2 | 1.5HP · 1Ø | 72 | 87 lbs | 18.1L x 16.9W x 32.7H" |
Extreme 2V 1.5HP | No | 3.5 CFM | 114 psi | 8.5 CFM | 2 | 1.5HP · 1Ø | 72 | 73 lbs | 18.1L x 16.9W x 32.7H" |
Extreme 2V 2HP | No | 4.5 CFM | 114 psi | 12.4 CFM | 2 | 2HP · 1Ø | 78 | 78 lbs | 18.1L x 16.9W x 32.7H" |
Extreme Hookah 5G 70 | No | 8.4 CFM | 145 psi | 13.4 CFM | 2 | 3HP · 70mm | 82 | 59 lbs | 16.5L x 17.7W x 17.7H" |
Extreme Hookah 5G 60 | No | 6.7 CFM | 145 psi | 9.5 CFM | 2 | 3HP · 60mm | 85 | 56 lbs | 16.5L x 17.7W x 17.7H" |
Extreme Hookah 3 24V | No | 5.8 CFM | 145 psi | 9.9 CFM | 2 | 24V · 800W | 72 | 50 lbs | 16.1L x 15.7W x 17.3H" |
Extreme Hookah 3 12V | No | 5.5 CFM | 145 psi | 9.2 CFM | 2 | 12V · 800W | 72 | 50 lbs | 16.1L x 15.7W x 17.3H" |
Extreme 3T Hookah 2HP | No | 7.9 CFM | 145 psi | 12.4 CFM | 2 | 2HP · 1Ø | 73 | 60 lbs | 22.8L x 12.2W x 15.4H" |
Extreme 3T Hookah 1.5HP | No | 6.4 CFM | 145 psi | 8.5 CFM | 2 | 1.5HP · 1Ø | 72 | 51 lbs | 20.8L x 12.2W x 15.4H" |
Esprit 3T Hookah 60 24V 500W | No | 4.6 CFM | 145 psi | 7.9 CFM | 2 | 500W · 24V | 62 | 32 lbs | 17.7L x 9.4W x 11W" |
Esprit 3T Hookah 60 12V 600W | No | 4.0 CFM | 145 psi | 7.9 CFM | 2 | 600W · 12V | 62 | 32 lbs | 17.7L x 9.4W x 11W" |
Esprit 3T Hookah 60 12V 500W | No | 2.6 CFM | 145 psi | 6.4 CFM | 2 | 500W · 12V | 58 | 27 lbs | 17.7L x 9.4W x 11W" |
Esprit 3T Hookah 60/2 | No | 4.4 CFM | 145 psi | 7.4 CFM | 2 | .75HP · 1Ø | 62 | 29 lbs | 17.7L x 9.4W x 11W" |
Pacific MX 85 | No | 30 CFM | 4786 psi | -- | 4 | 25HP · 3Ø | 75 | 1367 lbs | 33.9L x 61.4W x 68.1H" |
Pacific MX 68 | No | 24 CFM | 4786 psi | -- | 4 | 20HP · 3Ø | 75 | 1146 lbs | 33.9L x 61.4W x 68.1H" |
Pacific MX 60/4 | No | 21.2 CFM | 4786 psi | -- | 4 | 15HP · 3Ø | 72 | 1146 lbs | 33.9L x 61.4W x 68.1H" |
Pacific MX 60 | No | 21.2 CFM | 4786 psi | -- | 3 | 15HP · 3Ø | 75 | 1102 lbs | 33.9L x 61.4W x 68.1H" |
Pacific MX 50 | No | 17.7 CFM | 4786 psi | -- | 3 | 15HP · 3Ø | 72 | 1014 lbs | 33.9L x 61.4W x 68.1H" |
Pacific CX 85 | -- | 30 CFM | 4786 psi | -- | 3 | 25HP · 3Ø | 77 | 1256 lbs | 33L x 29.5W x 55.9H" |
Pacific CX 68 | -- | 24 CFM | 4786 psi | -- | 3 | 20HP · 3Ø | 75 | 1036 lbs | 33L x 29.5W x 55.9H" |
Pacific CX 60 | -- | 21.2 CFM | 4786 psi | -- | 3 | 15HP · 3Ø | 73 | 926 lbs | 33L x 29.5W x 55.9H" |
Pacific CX 50 | -- | 17.7 CFM | 4786 psi | -- | 3 | 15HP · 3Ø | 72 | 882 lbs | 33L x 29.5W x 55.9H" |
Pacific M 30 Nitrox | No | 10.6 CFM | 4786 psi | -- | 4 | 7.5HP | 68 | 674 lbs | 46.5L x 42.5W x 52.8H" |
Pacific PG 35 | No | 12.4 CFM | 4786 psi | -- | 4 | 10HP Gas | 81 | 282 lbs | 46.5L x 21.3W x 27.1H" |
Pacific PG 30 | No | 10.6 CFM | 4786 psi | -- | 3 | 10HP Gas | 79 | 271 lbs | 46.5L x 21.3W x 27.1H" |
Pacific PG 27 | No | 9.5 CFM | 4786 psi | -- | 3 | 9HP Gas | 80 | 249 lbs | 46.5L x 21.3W x 27.1H" |
Pacific PG 23 | No | 8.1 CFM | 4786 psi | -- | 3 | 9HP Gas | 79 | 249 lbs | 46.5L x 21.3W x 27.1H" |
Pacific P 35 | No | 12.4 CFM | 4786 psi | -- | 4 | 10HP · 3Ø | 78 | 313 lbs | 46.4L x 21.3W x 27.2H" |
Pacific P 30 | No | 10.6 CFM | 4786 psi | -- | 3 | 7.5HP · 3Ø | 75 | 302 lbs | 46.4L x 21.3W x 27.2H" |
Pacific P 27 | No | 9.5 CFM | 4786 psi | -- | 3 | 7.5HP · 3Ø | 76 | 302 lbs | 46.4L x 21.3W x 27.2H" |
Pacific P 23 | No | 8.1 CFM | 4786 psi | -- | 3 | 5.5HP · 3Ø | 75 | 300 lbs | 46.4L x 21.3W x 27.2H" |
Pacific P 16 | No | 5.6 CFM | 4786 psi | -- | 3 | 4HP · 1Ø | 74 | 300 lbs | 46.4L x 21.3W x 27.2H" |
CNG 3.8 | No | 8.2 CFM | 5076 psi | 50–500 mbar | 3 | 7.5HP | 65 | 510 lbs | 29.5L x 33.5W x 43.3H" |
CNG 2.8 | No | 6 CFM | 5076 psi | 50–500 mbar | 3 | 5.5HP | 65 | 475 lbs | 29.5L x 33.5W x 43.3H" |
CNG 1.0 | No | 2.1 CFM | 5076 psi | 50–500 mbar | 3 | 4HP | 62 | 450 lbs | 29.5L x 33.5W x 43.3H" |
CNG 5.0 | No | 10.6 CFM | 5076 psi | 50–650 mbar | 3 | 10HP | 65 | 610 lbs | 31.5L x 43.3W x 55.1H" |
Pacific 30 Block | -- | 10.6 CFM | 4786 psi | -- | 4 | -- | -- | -- | |
Pacific 27 Block | -- | 9.5 CFM | 4786 psi | -- | 4 | -- | -- | -- | |
Pacific 23 Block | -- | 8.1 CFM | 4786 psi | -- | 4 | -- | -- | -- | |
Pacific 16 Block | -- | 5.6 CFM | 4786 psi | -- | 4 | -- | -- | -- | |
Atlantic 100 Block | No | 3.5 CFM | 330 bar (4786 psi) | -- | 4 | -- | -- | -- | |
Atlantic 60 Block | No | 2.1 CFM | 330 bar (4786 psi) | -- | 4 | -- | -- | -- | |
Booster N₂ 140-350 Silenced | No | 28.3–49.4 CFM | 5076 psi | 145–218 psi | 2 | 15HP · 3Ø | 68 | 1014 lbs | 33.9L x 59W x 68.5H" |
Booster N₂ 140-350 Silenced | No | 23–28.3 CFM | 5076 psi | 102–131 psi | 2 | 15HP · 3Ø | 68 | 1014 lbs | 33.9L x 59W x 68.5H" |
Booster N₂ 140-350 Silenced | No | 12.4–17.7 CFM | 5076 psi | 58–87 psi | 2 | 15HP · 3Ø | 68 | 1014 lbs | 33.9L x 59W x 68.5H" |
Booster N₂ 140-350 Open | No | 28.3–49.4 CFM | 5076 psi | 145–218 psi | 2 | 15HP · 3Ø | 79 | 947 lbs | 33.9L x 51.2W x 68.5H" |
Booster N₂ 140-350 Open | No | 23–28.3 CFM | 5076 psi | 102–131 psi | 2 | 15HP · 3Ø | 79 | 947 lbs | 33.9L x 51.2W x 68.5H" |
Booster N₂ 140-350 Open | No | 12.4–17.7 CFM | 5076 psi | 58–87 psi | 2 | 15HP · 3Ø | 79 | 947 lbs | 33.9L x 51.2W x 68.5H" |
Extreme 4 3HP Ph3 60Hz | No | -- | 145 psi | 25.5 CFM | 4 | 3HP · 3Ø | 73 | 73 lbs | 25.2L x 11W x 8.3H" |
Extreme 4 3HP Ph3 50Hz | No | -- | 145 psi | 21.2 CFM | 4 | 3HP · 3Ø | 73 | 73 lbs | 25.2L x 11W x 8.3H" |
Extreme 4 3HP 60Hz | No | -- | 145 psi | 25.5 CFM | 4 | 3HP · 1Ø | 73 | 73 lbs | 25.2L x 11W x 8.3H" |
Extreme 4 3HP 50Hz | No | -- | 145 psi | 21.2 CFM | 4 | 3HP · 1Ø | 73 | 73 lbs | 25.2L x 11W x 8.3H" |
Extreme 4 2.5HP 60Hz | No | -- | 145 psi | 20 CFM | 4 | 2.5HP · 1Ø | 73 | 66 lbs | 24L x 11W x 8.3H" |
Extreme 4 2.5HP 50Hz | No | -- | 145 psi | 17 CFM | 4 | 2.5HP · 1Ø | 73 | 66 lbs | 24L x 11W x 8.3H" |
Extreme 70 2HP 50Hz | No | -- | 145 psi | 12.4 CFM | 2 | 2HP · 3Ø | 73 | 44 lbs | 16.9L x 11W x 11.4H" |
Extreme 70 2HP 60Hz | No | -- | 145 psi | 14.8 CFM | 2 | 2HP · 3Ø | 73 | 44 lbs | 16.9L x 11W x 11.4H" |
Extreme 70 2HP 60Hz | No | -- | 145 psi | 14.8 CFM | 2 | 2HP · 3Ø | 73 | 44 lbs | 16.9L x 11W x 11.4H" |
Extreme 70 2HP 50Hz | No | -- | 145 psi | 12.4 CFM | 2 | 2HP · 3Ø | 73 | 44 lbs | 16.9L x 11W x 11.4H" |
Extreme 60 1.5HP 60Hz | No | -- | 145 psi | 10.1 CFM | 2 | 1.5HP · 1Ø | 72 | 36 lbs | 15.3L x 15.0W x 10.2H" |
Extreme 60 1.5HP 50Hz | No | -- | 145 psi | 8.5 CFM | 2 | 1.5HP · 1Ø | 72 | 36 lbs | 15.3L x 15.0W x 10.2H" |
Esprit 60/2 60Hz | No | -- | 114 psi | 8.8 CFM | 2 | .75HP · 1Ø | 55 | 17 lbs | 11.4L x 8.7W x 5.5H" |
Esprit 60/2 50Hz | No | -- | 114 psi | 7.4 CFM | 2 | .75HP · 1Ø | 55 | 17 lbs | 11.4L x 8.7W x 5.5H" |
Esprit 60/4 60Hz | No | -- | 114 psi | 4.4 CFM | 2 | .75HP · 1Ø | 48 | 17 lbs | 11.4L x 8.7W x 5.5H" |
Esprit 60/4 50Hz | No | -- | 114 psi | 3.7 CFM | 2 | .75HP · 1Ø | 48 | 17 lbs | 11.4L x 8.7W x 5.5H" |
Super Extreme 1 20L 30bar | No | -- | 435 psi | 4.6 CFM | 2 | 2.2HP · 1Ø | 72 | 102 lbs | 21.3L x 23.6W x 32.7H" |
Super Extreme 1 TN 18L | No | -- | 435 psi | 4.6 CFM | 2 | 2.2HP · 1Ø | 72 | 75 lbs | 26.4L x 25.6W x 18.9H" |
Super Extreme TN 18L 30 bar | No | -- | 435 psi | 4.6 CFM | 2 | 2.2HP · 1Ø | 72 | 75 lbs | 24.4L x 19.7W x 15.7H" |
Extreme 3T 2HP 1400 | No | -- | 145 psi | 12.4 CFM | 2 | 2HP · 1Ø | 73 | 60 lbs | 22.8L x 12.2W x 15.4H" |
Extreme 3T 5L 2HP | No | -- | 145 psi | 14.1 CFM | 2 | 2HP · 1Ø | 82 | 58 lbs | 20.9L x 12.2W x 15.4H" |
Extreme 3T 5L 1.5HP 15bar | No | -- | 217 psi | 4 CFM | 2 | 1.5HP · 1Ø | 72 | 51 lbs | 20.9L x 12.2W x 15.4H" |
Extreme 3T 5L 1.5HP | No | -- | 145 psi | 8.5 CFM | 2 | 1.5HP · 1Ø | 72 | 51 lbs | 20.9L x 12.2W x 15.4H" |
Extreme 3T 5L 0.75HP | No | -- | 145 psi | 7 CFM | 2 | .75HP · 1Ø | 72 | 45 lbs | 20.9L x 12.2W x 15.4H" |
Esprit Sil. 5L 60/2 | No | -- | 145 psi | 7.4 CFM | 2 | .75HP · 1Ø | 55 | 44.1 lbs | 16.1L x 9.8W x 15.4H" |
Esprit Sil. 5L 60/4 | No | -- | 145 psi | 3.7 CFM | 2 | .75HP · 1Ø | 48 | 44.1 lbs | 16.1L x 9.8W x 15.4H" |
Esprit 1 10L 60/2 | No | -- | 145 psi | 7.4 CFM | 2 | .75HP · 1Ø | 62 | 37.5 lbs | 16.1L x 13.8W x 26.8H" |
Esprit 1 10L 60/4 | No | -- | 145 psi | 8.8 CFM | 2 | .75HP · 1Ø | 63 | 37.5 lbs | 16.1L x 13.8W x 26.8H" |
Esprit 3 15L 60/2 | No | -- | 145 psi | 7.4 CFM | 2 | .75HP · 1Ø | 62 | 39.7 lbs | 18.5L x 8.7W x 15.7H" |
Esprit 3 15L 60/4 | No | -- | 145 psi | 3.7 CFM | 2 | .75HP · 1Ø | 52 | 39.7 lbs | 18.5L x 8.7W x 15.7H" |
Silverstone 2 450W 24V | No | -- | 114 psi | 4.2 CFM | 1 | 350W · 24V | 74 | 22 lbs | 16.1L x 5.9W x 15.4H" |
Silverstone 2 350W 12V | No | -- | 114 psi | 2.1 CFM | 1 | 350W · 12V | 74 | 22 lbs | 16.1L x 5.9W x 15.4H" |
Silverstone 2 450W 12V | No | -- | 114 psi | 3.5 CFM | 1 | 450W · 12V | 72 | 22 lbs | 16.1L x 5.9W x 15.4H" |
Esprit 3T 60 500W 12V | No | -- | 145 psi | 6.4 CFM | 2 | 500W · 12V | 58 | 27 lbs | 17.7L x 9.5W x 11H" |
Esprit 3T 60 600W 12V | No | -- | 145 psi | 7.9 CFM | 2 | 600W · 12V | 62 | 32 lbs | 17.7L x 9.5W x 11H" |
Esprit 3T 60 500W 24V | No | -- | 145 psi | 7.9 CFM | 2 | 500W · 24V | 62 | 32 lbs | 17.7L x 9.5W x 11H" |
Esprit 3T 60/4 | No | -- | 145 psi | 7.4 CFM | 2 | .75HP · 1Ø | 62 | 29 lbs | 17.7L x 9.4W x 11H" |
Esprit 3T 60/2 | No | -- | 145 psi | 3.7 CFM | 2 | .75HP · 1Ø | 52 | 29 lbs | 17.7L x 9.4W x 11H" |
Silverstone 2 | No | -- | 114 psi | 3.5 CFM | 1 | .5HP · 1Ø | 72 | 22 lbs | 16.1L x 5.9W x 15.4H" |
Esprit 2V 25L 60/2 25L | No | 1.8 CFM | 114 psi | 7.4 CFM | 2 | .75HP · 1Ø | 62 | 51 lbs | 16.1L x 17.7W x 20.5H" |
Esprit 2V 25L 60/4 25L | No | 0.7 CFM | 114 psi | 3.7 CFM | 2 | .75HP · 1Ø | 52 | 51 lbs | 16.1L x 17.7W x 20.5H" |
Extreme 2V 25L 1.5 | No | 3.5 CFM | 114 psi | 8.5 CFM | 2 | 1.5HP· 1Ø | 72 | 73 lbs | 18.1L x 16.9W x 32.7H" |
Shooting G 100 | No | 3.5 CFM | 4700 psi | -- | 4 | 6HP Gas | 84 | 93 lbs | 29.9L x 16.1W x 16.1H" |
Shooting P 100/3 | No | 3.5 CFM | 4700 psi | -- | 4 | 4HP · 3Ø | 79 | 93 lbs | 22.8L x 16.1W x 16.1H" |
Shooting P 100/1 | No | 3.5 CFM | 4700 psi | -- | 4 | 3HP · 1Ø | 79 | 93 lbs | 22.8L x 16.1W x 16.1H" |
Shooting P 60/1 | No | 2.1 CFM | 4700 psi | -- | 4 | 2HP · 1Ø | 76 | 87 lbs | 22.8L x 16.1W x 16.1H" |
Extreme Robin 70 6HP | No | -- | 217 psi | 12.6 CFM | 2 | 6HP Gas | 85 | 39 lbs | 21.7L x 11.4W x 13H" |
Extreme Robin 60 6HP | No | -- | 145 psi | 19 CFM | 2 | 6HP Gas | 85 | 39 lbs | 21.7L x 11.4W x 13H" |
Extreme Robin 70 3HP | No | -- | 145 psi | 13.4 CFM | 2 | 3HP Gas | 85 | 29 lbs | 17.7L x 9.4W x 11H" |
Extreme Robin 60 3HP | No | -- | 145 psi | 9.5 CFM | 2 | 3HP Gas | 85 | 29 lbs | 17.7L x 9.4W x 11H" |
Extreme 24V | No | -- | 145 psi | 8.4 CFM | 2 | 800W · 24V | 80 | 29 lbs | 11.4L x 8.7W x 5.5H" |
Extreme 24V | No | -- | 145 psi | 4.2 CFM | 2 | 800W · 12V | 80 | 29 lbs | 11.4L x 8.7W x 5.5H" |
Extreme 12V | No | -- | 145 psi | 8.4 CFM | 2 | 800W · 12V | 72 | 29 lbs | 11.4L x 8.7W x 5.5H" |
Esprit 500W 24V | No | -- | 145 psi | 7.9 | 2 | 500W · 24V | 52 | 18 lbs | 11L x 8.7W x 5.5H" |
Esprit 600W 12V | No | -- | 145 psi | 7.9 | 2 | 600W · 12V | 52 | 18 lbs | 11L x 8.7W x 5.5H" |
Esprit 500W 12V | No | -- | 145 psi | 6.4 | 2 | 500W · 12V | 50 | 15 lbs | 11L x 8.7W x 5.5H" |
Silverstone 24V | No | -- | 114 psi | 2 CFM | 1 | 350W · 12V | 72 | 13 lbs | 9.8L x 5.5W x 7.5W" |
Silverstone 24V | No | -- | 114 psi | 4.2 CFM | 1 | 350W · 24V | 72 | 13 lbs | 9.8L x 5.5W x 7.5W" |
Silverstone 12V | No | -- | 114 psi | 3.4 CFM | 1 | 450W · 12V | 72 | 13 lbs | 9.8L x 5.5W x 7.5W" |
Extreme 15bar 60Hz | No | -- | 217 bar | 5 CFM | 2 | 1.5HP · 1Ø | 73 | 36 lbs | 15.4L x 11W x 10.2H" |
Extreme 21bar 60Hz | No | -- | 305 psi | 11 CFM | 4 | 3HP · 3Ø | 72 | 73 lbs | 25.2L x 11W x 12.2H" |
Extreme 30 60Hz | No | -- | 435 psi | 5.5 CFM | 2 | 2.2HP · 1Ø | 72 | 40 lbs | 12.2L x 11W x 10.2H" |
Extreme 30 50Hz | No | -- | 435 psi | 4.6 CFM | 2 | 2.2HP · 1Ø | 72 | 40 lbs | 12.2L x 11W x 10.2H" |
Extreme 21bar 50Hz | No | -- | 305 psi | 9.2 CFM | 4 | 3HP · 3Ø | 72 | 73 lbs | 25.2L x 11W x 12.2H" |
Extreme 15bar 50Hz | No | -- | 217 bar | 4 CFM | 2 | 1.5HP · 1Ø | 73 | 36 lbs | 15.4L x 11W x 10.2H" |
Extreme 4 Pump 3HP 60Hz | No | -- | 145 psi | 25.5 CFM | 4 | 3HP · 3Ø | 73 | 73 lbs | 24L x 11W x 12.2H" |
Extreme 4 Pump 3HP 50Hz | No | -- | 145 psi | 21.2 CFM | 4 | 3HP · 3Ø | 73 | 73 lbs | 24L x 11W x 12.2H" |
Extreme 4 Pump 2.5HP 60Hz | No | -- | 145 psi | 20 CFM | 4 | 2.5HP · 1Ø | 73 | 66 lbs | 24L x 11W x 12.2H" |
Extreme 4 Pump 2.5HP 50Hz | No | -- | 145 psi | 17 CFM | 4 | 2.5HP · 1Ø | 73 | 66 lbs | 24L x 11W x 12.2H" |
Extreme 60 Pump 2HP 50Hz | No | -- | 145 psi | 14.1 CFM | 2 | 2HP · 1Ø | 82 | 43 lbs | 15.7L x 11W x 10.2H" |
Extreme 60 Pump 1.5HP 60Hz | No | -- | 145 psi | 10.1 CFM | 2 | 1.5HP · 1Ø | 72 | 36 lbs | 15.4L x 11W x 10.2H" |
Extreme 60 Pump 1.5HP 50Hz | No | -- | 145 psi | 8.5 CFM | 2 | 1.5HP · 1Ø | 72 | 36 lbs | 15.4L x 11W x 10.2H" |
Extreme 60 Pump 0.75HP 60Hz | No | -- | 145 psi | 8.5 CFM | 2 | .75HP · 1Ø | 72 | 31 lbs | 15.4L x 11W x 10.2H" |
Extreme 60 Pump 0.75HP 50Hz | No | -- | 145 psi | 7.0 CFM | 2 | .75HP · 1Ø | 72 | 31 lbs | 15.4L x 11W x 10.2H" |
Esprit 60 Pump 60/2 60Hz | No | -- | 114 psi | 8.8 CFM | 2 | .75HP · 1Ø | 55 | 17 lbs | 11.4L x 8.7W x 5.5H" |
Esprit Pump 60/2 50Hz | No | -- | 114 psi | 7.4 CFM | 2 | .75HP · 1Ø | 55 | 17 lbs | 11.4L x 8.7W x 5.5H" |
Esprit Pump 60/4 60Hz | No | -- | 114 psi | 4.4 CFM | 2 | .75HP · 1Ø | 48 | 17 lbs | 11.4L x 8.7W x 5.5H" |
Esprit Pump 60/4 50Hz | No | -- | 114 psi | 3.7 CFM | 2 | .75HP · 1Ø | 48 | 17 lbs | 11.4L x 8.7W x 5.5H" |
Silverstone 60Hz | No | -- | 114 psi | 4.2 CFM | 1 | .5HP · 1Ø | 72 | 12 lbs | 9L x 5.5W x 7.1H" |
Silverstone 50Hz | No | -- | 114 psi | 3.5 CFM | 1 | .5HP · 1Ø | 72 | 12 lbs | 9L x 5.5W x 7.1H" |
Silverstone | No | -- | 114 psi | 3.5 CFM | 1 | .5HP · 1Ø | 72 | 15.4 lbs | 13L x 5.9W x 9.1H" |
Extreme 3T Hookah 2HP | No | -- | 145 psi | 12.4 CFM | 2 | 230V/1Ø 2HP | 73 | 60 lbs | 20.8L x 12.2W x 15.4H" |
Extreme 3T Hookah 1.5HP | No | -- | 145 psi | 8.5 CFM | 2 | 230V/1Ø 1.5HP | 72 | 51 lbs | 20.8L x 12.2W x 15.4H" |
Extreme Hookah 5G 70 | No | -- | 145 psi | 13.4 CFM | 2 | HP 70mm | 82 | 59 | 46.5L x 17.7W x 17.7H" |
Pacific EG 35 | No | 12.4 CFM | 5076 psi | -- | 4 | 14HP Gas | 81 | 282 lbs | 43.7L x 20.8W x 35.6H" |
Pacific EG 30 | No | 10.6 CFM | 5076 psi | -- | 3 | 14HP Gas | 79 | 271 lbs | 43.7L x 20.8W x 35.6H" |
Pacific EG 27 | No | 9.5 CFM | 5076 psi | -- | 3 | 9HP Gas | 80 | 249 lbs | 43.7L x 20.8W x 35.6H" |
Pacific EG 23 | No | 8.1 CFM | 5076 psi | -- | 3 | 9HP Gas | 79 | 249 lbs | 43.7L x 20.8W x 35.6H" |
Pacific E 35 | No | 12.4 CFM | 4700 psi | -- | 4 | 10HP · 3Ø | 78 | 277 lbs | 38.1L x 20.8W x 25.6H" |
Pacific E 30 | No | 10.6 CFM | 4700 psi | -- | 3 | 7.4HP · 3Ø | 75 | 260 lbs | 38.1L x 20.8W x 25.6H" |
Pacific E 27 | No | 9.5 CFM | 4700 psi | -- | 3 | 7.4HP · 3Ø | 76 | 260 lbs | 38.1L x 20.8W x 25.6H" |
Pacific E 23 | No | 8.1 CFM | 4700 psi | -- | 3 | 5.4HP · 3Ø | 75 | 238 lbs | 38.1L x 20.8W x 25.6H" |
Pacific E 16 | No | 5.6 CFM | 4700 psi | -- | 3 | 4HP · 1Ø | 74 | 238 lbs | 38.1L x 20.8W x 25.6H" |
Pacific D 35 | No | 12.4 CFM | 4700 psi | -- | 4 | 10HP Diesel | 89 | 379 lbs | 42.9L x 22.8W x 25.6H" |
Pacific D 30 | No | 10.6 CFM | 4700 psi | -- | 3 | 10HP Diesel | 87 | 379 lbs | 42.9L x 22.8W x 25.6H" |
Pacific D 27 | No | 9.5 CFM | 4700 psi | -- | 3 | 10HP Diesel | 89 | 364 lbs | 42.9L x 22.8W x 25.6H" |
Pacific D 23 | No | 8.1 CFM | 4700 psi | -- | 3 | 10HP Diesel | 85 | 364 lbs | 42.9L x 22.8W x 25.6H" |
Extreme TN 50L 3HP | No | -- | 145 psi | 21.2 CFM | 2 | 3HP · 3Ø | 73 | 159 lbs | 36.6L x 29.5W x 25.6H" |
Extreme TN 50L 2.5HP | No | -- | 145 psi | 17 CFM | 2 | 2.5HP · 1Ø | 73 | 155 lbs | 36.6L x 29.5W x 25.6H" |
Extreme TN 50L 2HP 2800 | No | -- | 145 psi | 14.1 CFM | 2 | 2HP · 1Ø | 82 | 143 lbs | 36.6L x 29.5W x 25.6H" |
Extreme TN 50L 2HP 1400 | No | -- | 145 psi | 12.4 CFM | 2 | 2HP · 1Ø | 73 | 148 lbs | 36.6L x 29.5W x 25.6H" |
Extreme TN 50L 1.5HP | No | -- | 145 psi | 8.5 CFM | 2 | 1.5HP · 1Ø | 72 | 137 lbs | 36.6L x 29.5W x 25.6H" |
Extreme TN 22L 3HP | No | -- | 145 psi | 21.2 CFM | 2 | 3HP · 3Ø | 73 | 132 lbs | 29.5L x 26.4W x 22.0H" |
Extreme TN 22L 2.5HP | No | -- | 145 psi | 17 CFM | 2 | 2.5HP · 1Ø | 73 | 128 lbs | 29.5L x 26.4W x 22.0H" |
Extreme TN 22L 2HP 2800 | No | -- | 145 psi | 14.1 CFM | 2 | 2HP · 1Ø | 82 | 116 lbs | 29.5L x 26.4W x 22.0H" |
Extreme TN 22L 2HP 1400 | No | -- | 145 psi | 12.4 CFM | 2 | 2HP · 1Ø | 73 | 121 lbs | 29.5L x 26.4W x 22.0H" |
Extreme TN 22L 1.5HP | No | -- | 145 psi | 8.5 CFM | 2 | 1.5HP · 1Ø | 72 | 110 lbs | 29.5L x 26.4W x 22.0H" |
Extreme TN 22L 0.75HP | No | -- | 145 psi | 7 CFM | 2 | .75HP · 1Ø | 72 | 105 lbs | 29.5L x 26.4W x 22.0H" |
Extreme Sil. 50L 2HP 2800 | No | -- | 145 psi | 14.1 CFM | 2 | 2HP · 1Ø | 67 | 190 lbs | 28.3L x 19.7W x 32.3H" |
Extreme Sil. 50L 2HP 1400 | No | -- | 145 psi | 12.4 CFM | 2 | 2HP · 1Ø | 62 | 195 lbs | 28.3L x 19.7W x 32.3H" |
Related Products
Name
Name
Name
bottom of page
