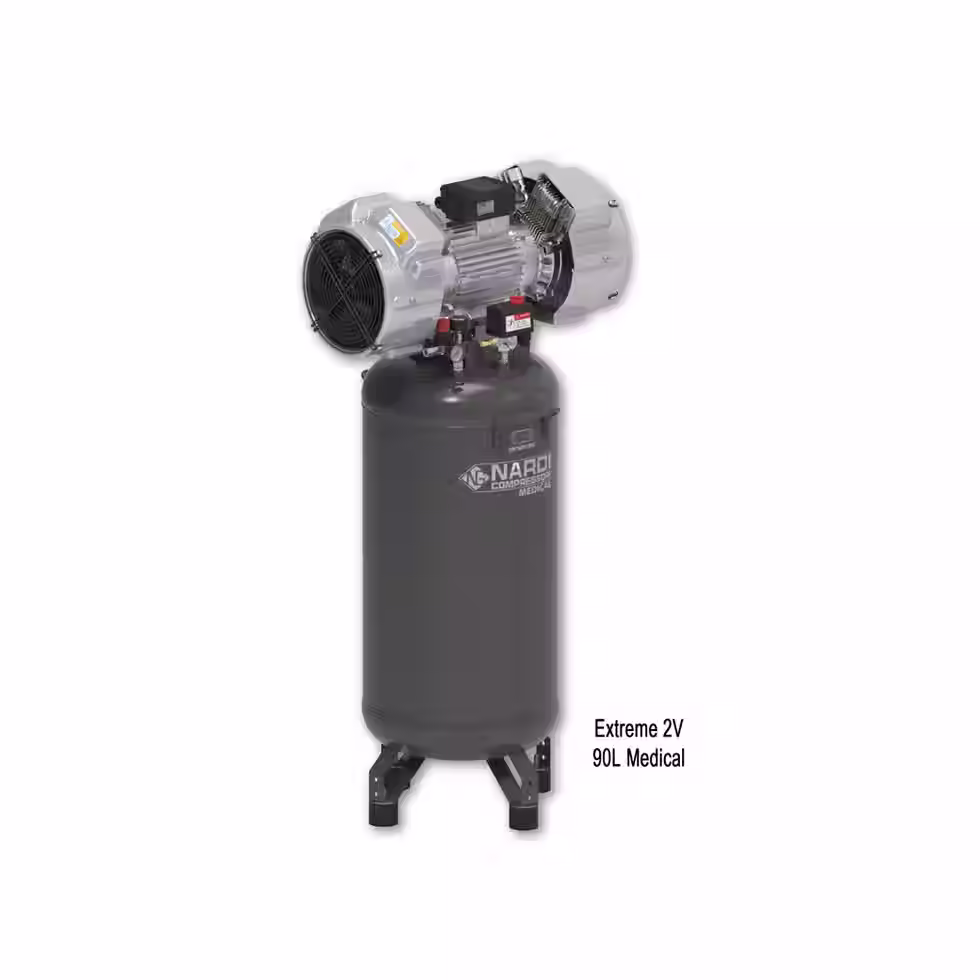

Extreme 2 V/D 90L Medical Oil-Free Compressor
$0.00
The NARDI COMPRESSORI MEDICAL range of compressors are expertly designed and engineered by skilled technicians specifically for the dental and medical industries. Each compressor features air tanks coated internally with corrosion-resistant epoxy electrostatic powder, ensuring durability and reliability.
Equipped with advanced dryers that effectively absorb humidity, these compressors deliver clean, moisture-free air. Additionally, NARDI uses antibacterial filters to meet stringent international standards demanded by the specialized markets we serve. Built with modern, robust, and silent components, these compressors guarantee exceptional performance and reliability.
With its 90-liter air storage tank, the EXTREME 2 V/D model is ideal for dental clinics, workshops, and medical laboratories where clean, dry air is essential. It can be supplied with an efficient filtering system and a compact condensation separator at the air outlet.
Manufactured in-house by NARDI, the desiccant dryer automatically regenerates absorbing elements after each filling cycle, ensuring continuous high performance. Compact, quiet, and designed for longevity with minimal maintenance, the EXTREME 2 V/D is built to meet the demanding needs of the medical industry. The Extreme 2V offers all the standard features of the Extreme 2D, minus the Dryer D600. Its 2.2 kW (3.0 HP) motor delivers working pressures of 5 bar (72 psi) or 8 bar (114 psi).
Key Features
- Dryer Options: Available with an activated charcoal dryer (Extreme 2D) or without a dryer (Extreme 2V).
- Robust Construction: Compressors are built with a cast aluminum case.
- Compact & Balanced: Features a light and compact design with a unique connecting rod system for perfect balance.
- Enhanced Durability: Components undergo heat treatment to extend their life and performance.
- Advanced Technology: Incorporates continuously evolving advanced compression technology.
- Premium Valves: Equipped with stainless steel valves.
- Portability: Tanks are painted to approved standards and include handles and wheels for easy transport.
- Custom-Designed Motors: Powered by reliable electric motors specifically designed and built by Nardi Compressors for each model type.
[Click to Download Medical Compressor Catalog]
Request a Quote for More Information
Click the REQUEST A QUOTE button to discuss your specific needs and get detailed information on optional equipment such as soft start, oil pump, upgraded filtering system, dual-pressure fill option, condensate collector, extra-large separators, air quality analyzers, and more.
Quantity
Tank Size
90 liters
Snail trail
Name
SKU
Description
Title
Description
SKU
Title
SKU
Title
Technical Specifications
Model | Dryer | Charging Rate (cfm) | Maximum psi | Intake (cfm) | Stg / Cyl | Power · Phase | Sound (dB) | Weight (lb) | Dimensions (inches) |
|---|---|---|---|---|---|---|---|---|---|
Hookah Pro | No | -- | 145 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 53 | 19.7L x 11.8W x 16.5H” |
Nardi ONE 85 | No | 30 | 6000 | -- | 4 | 25hp · 3Ø | 2866 | 90.6L x 34.1W x 71.7H" | |
Nardi ONE 68 | No | 24.0 | 6000 | -- | 4 | 20hp · 3Ø | 2646 | 90.6L x 34.1W x 71.7H" | |
Nardi ONE 60/4 | No | 21.2 | 6000 | -- | 4 | 15hp · 3Ø | 2646 | 90.6L x 34.1W x 71.7H" | |
Nardi ONE 60 | No | 21.2 | 6000 | -- | 3 | 15hp · 3Ø | 2601 | 90.6L x 34.1W x 71.7H" | |
Nardi ONE 50 | No | 17.7 | 6000 | -- | 3 | 15hp · 3Ø | 2513 | 90.6L x 34.1W x 71.7H" | |
Extreme 5G Fibre | No | -- | 145 | 9.5 | 2 | 3hp Gas | 85 | 56 | 20.1L x 12.2W x 16.5H" |
Extreme 5E Fibre | No | -- | 145 | 9.5 | 2 | 1.5hp · 1Ø | 72 | 54 | 20.1L x 11.4W x 15.8H" |
Extreme 2 50L 2hp | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 67 | 103 | 23.2L x 16.9W x 33.5H" |
Extreme 2 50L 1.5hp | No | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 66 | 99 | 23.2L x 16.9W x 33.5H" |
Extreme 2 50L 0.75hp | No | -- | 114 | 7 | 2 | .75hp · 1Ø | 66 | 92.5 | 23.2L x 16.9W x 33.5H" |
Extreme 2 25L 2hp | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 67 | 90 | 19.7L x 16.9W x 33.5H" |
Extreme 2 25L 1.5hp | No | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 66 | 85 | 19.7L x 16.9W x 33.5H" |
Extreme 2 25L 0.75hp | No | -- | 114 | 7 | 2 | .75hp · 1Ø | 66 | 79.5 | 19.7L x 16.9W x 33.5H" |
Silverstone 24V 350W | No | -- | 114 | 4.2 | 1 | 350W · 24V | 74 | 15.4 | 13L x 5.9W x 9W" |
Extreme 1C 25L 1.5hp | No | -- | 145 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 73 | 21.3L x 23.6W x 32.7H" |
Extreme 1C 25L 2hp 1400 | No | -- | 145 | 12.4 | 2 | 2hp · 1Ø | 73 | 85 | 21.3L x 23.6W x 32.7H" |
Extreme 1C 25L 2hp 2800 | No | -- | 145 | 14.1 | 2 | 2hp · 1Ø | 83 | 80 | 21.3L x 23.6W x 32.7H" |
Extreme MPR 500L 6.0 | D600 | 18 | 116 | 42.4 | 8 | 6hp · 3Ø | 74 | 547 | 76.7L x 36.6W x 43.3H" |
Extreme MPR 500L 9.0 | D600 | 27 | 116 | 63.6 | 12 | 9hp · 3Ø | 75 | 650 | 76.7L x 36.6W x 43.3H" |
Extreme MPR 270L 3.0 | D600 | 8.8 | 114 | 21.2 | 4 | 3hp · 3Ø | 73 | 287 | 63L x 36.6W x 34.3H" |
Extreme MPR 270L 6.0 | D600 | 18 | 114 | 42.4 | 8 | 6hp · 3Ø | 74 | 425 | 63L x 36.6W x 34.3H" |
Extreme MPR 270L 9.0 | D600 | 27 | 114 | 63.6 | 12 | 9hp · 3Ø | 75 | 530 | 63L x 36.6W x 34.3H" |
Extreme SR 2.0 | D600 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 64 | 173 | 28.0L x 17.3W x 29.9H" |
Extreme 4R 90L 2.0 1Ø | D600 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 167 | 43.3L x 23.2W x 31.9H" |
Extreme 4R 90L 2.5 1Ø | D600 | 6.7 | 114 | 17 | 4 | 2.5hp · 1Ø | 73 | 189 | 43.3L x 23.2W x 31.9H" |
Extreme 4R 90L 3.0 3Ø | D600 | 8.8 | 114 | 21.2 | 4 | 3hp · 3Ø | 73 | 194 | 43.3L x 23.2W x 31.9H" |
Extreme 3R 2.0 | D600 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 112 | 34.7L x 17.3W x 26.8H" |
Extreme 2R 3.0 3Ø | D600 | 8.8 | 114 | 21.2 | 4 | 3hp · 3Ø | 73 | 169 | 25.2L x 17.7W x 55.1H" |
Extreme 2R 3.0 1Ø | D600 | 17.0 | 114 | 6.7 | 4 | 3hp · 1Ø | 73 | 165 | 25.2L x 17.7W x 55.1H" |
Extreme 2R 2.0 1Ø | D600 | 12.4 | 114 | 4.5 | 2 | 2hp · 1Ø | 73 | 145 | 23L x 16.9W x 55.1H" |
Extreme 2R 2.0 1Ø | D600 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 112 | 23L x 16.9W x 32.7H" |
Extreme 2R 3.0 1Ø | D600 | 6.7 | 114 | 17.0 | 4 | 3hp · 1Ø | 73 | 132 | 25.2L x 17.7W x 35H" |
Extreme 2R 3.0 3Ø | D600 | 8.8 | 114 | 21.2 | 4 | 3hp · 3Ø | 73 | 136 | 25.2L x 17.7W x 35H" |
Shooting D 100 | -- | 3.5 | 4700 | -- | 4 | 4.7hp Diesel | 84 | 135 | 32.3L x 14.6W x 19.7H" |
Esprit 3 60 500W 24V | No | -- | 145 | 7.9 | 2 | 24V (500W) | 62 | 32 | 18.5L x 8.7W x 15.8H" |
Esprit 3 60 600W 12V | No | -- | 145 | 7.9 | 2 | 12V (600W) | 62 | 32 | 18.5L x 8.7W x 15.8H" |
Esprit 3 60 500W 12V | No | -- | 145 | 6.4 | 2 | 12V (500W) | 58 | 27 | 18.5L x 8.7W x 15.8H" |
Sany+Air | No | -- | 30 | 3.5 | 1 | .5hp · 1Ø | 72 | 18 | 19.7L x 6.7W x 12.2H" |
Extreme MPD 500L 9hp | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 650 | 76.7L x 36.6W x 43.3H" |
Extreme MPD 500L 6hp | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 547 | 76.7L x 36.6W x 43.3H" |
Extreme MPD 270L 3hp | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 287 | 63L x 36.6W x 34.3H" |
Extreme MPD 270L 6hp | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 425 | 63L x 36.6W x 34.3H" |
Extreme MPD 270L 9hp | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 530 | 63L x 36.6W x 34.3H" |
Extreme 2D 50L 1.5 | Yes | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 106 | 23L x 16.9W x 32.7H" |
Extreme 2D 50L 2.5 | Yes | -- | 114 | 6.7 | 2 | 2.5hp · 1Ø | 73 | 132 | 23L x 16.9W x 32.7H" |
Extreme 2D 50L 2.0 | Yes | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 112 | 23L x 16.9W x 32.7H" |
Extreme 2D 25L 2.0 | Yes | -- | 114 | 4.5 | 2 | 2hp · 1Ø | 72 | 97 | 23L x 16.9W x 26H" |
Extreme 2V 25L 2.0 | No | -- | 114 | 4.5 | 2 | 2hp · 1Ø | 73 | 78 | 18.1L x 16.9W x 26H" |
Extreme 2D 25L 1.5 | Yes | -- | 114 | 3.5 | 2 | 1.5hp · 1Ø | 72 | 91 | 23L x 16.9W x 26H" |
Extreme 2V 25L 1.5 | No | -- | 114 | 3.5 | 2 | 1.5hp · 1Ø | 72 | 73 | 18.1L x 16.9W x 26H" |
Pacific M Nitrox 30 | No | 10.6 | 6000 | -- | 4 | 7.5hp · 1/3Ø | 68 | 674 | 29.5L x 42.5W x 52.8H" |
Pacific MX 60 Nitrox Silenced | No | 21.2 | 6000 | -- | 4 | 15hp · 3Ø | 72 | 1080 | 33.9L x 59.1W x 68.5H" |
Pacific MX 60 Nitrox Open | No | 21.2 | 6000 | -- | 4 | 15hp · 3Ø | 72 | 1080 | 33.9L x 51.2W x 68.5H" |
Extreme MPD 500L 9.0 | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 650 | 76.7L x 36.6W x 43.3H" |
Extreme MPD 500L 6.0 | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 547 | 76.7L x 36.6W x 43.3H" |
Extreme MPV 500L 9.0 | No | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 558 | 76.7L x 25.2W x 43.3H" |
Extreme MPV 500L 6.0 | No | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 485 | 76.7L x 25.2W x 43.3H" |
Extreme SD 50L 2.0 | D400 | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 60 | 210 | 33.5L x 19.7W x 32.2H" |
Extreme SD 50L 1.5 | D400 | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 59 | 199 | 33.5L x 19.7W x 32.2H" |
Extreme SV 50L 2.0 | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 60 | 195 | 28.3L x 19.7W x 32.2H" |
Extreme SV 50L 1.5 | No | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 59 | 183 | 28.3L x 19.7W x 32.2H" |
Extreme MPD 270L 9.0 | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 530 | 63L x 36.6W x 34.3H" |
Extreme MPD 270L 6.0 | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 425 | 63L x 36.6W x 34.3H" |
Extreme MPD 270L 3.0 | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 287 | 63L x 36.6W x 34.3H" |
Extreme MPV 270L 9.0 | No | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 436 | 39.3L x 25.2W x 34.3H" |
Extreme MPV 270L 6.0 | No | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 364 | 39.3L x 25.2W x 34.3H" |
Extreme MPV 270L 3.0 | No | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 255 | 39.3L x 25.2W x 34.3H" |
Extreme SD 90L 3.0 3Ø | D600 | -- | 145 | 11 | 4 | 3hp · 3Ø | 62 | 369 | 33.8L x 22W x 43.3H" |
Extreme SD 90L 3.0 1Ø | D600 | -- | 145 | 8.5 | 4 | 3hp · 1Ø | 62 | 369 | 33.8L x 22W x 43.3H" |
Extreme SV 90L 3.0 3Ø | No | -- | 145 | 11 | 4 | 3hp · 3Ø | 62 | 342 | 33.8L x 22W x 40.2H" |
Extreme SV 90L 3.0 1Ø | No | -- | 145 | 8.5 | 4 | 3hp · 1Ø | 62 | 342 | 33.8L x 22W x 40.2H" |
Extreme 4D 90L 3.0 3Ø | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 43.3L x 21.3W x 31.9H" |
Extreme 4D 90L 3.0 1Ø | D600 | -- | 145 | 17 | 4 | 3hp · 1Ø | 73 | 167 | 43.3L x 21.3W x 31.9H" |
Extreme 4V 90L 3.0 3Ø | No | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 43.3L x 21.3W x 31.9H" |
Extreme 4V 90L 3.0 1Ø | No | -- | 145 | 17 | 4 | 3hp · 1Ø | 73 | 147 | 43.3L x 21.3W x 31.9H" |
Extreme 2D 90L 3.0 3Ø | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 77 | 170 | 29.1L x 17.7W x 55.1H" |
Extreme 2D 90L 3.0 1Ø | D600 | -- | 145 | 17 | 4 | 3hp · 1Ø | 77 | 170 | 29.1L x 17.7W x 55.1H" |
Extreme 2V 90L 3.0 3Ø | No | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 152 | 25.1L x 17.7W x 55.1H" |
Extreme 2V 90L 3.0 1Ø | No | -- | 145 | 17 | 4 | 3hp · 1Ø | 73 | 152 | 25.1L x 17.7W x 55.1H" |
Extreme SD 90L 2.5 | D400 | -- | 114 | 17 | 4 | 2.5hp · 1Ø | 62 | 340 | 37.8L x 22.0W x 40.2H" |
Extreme SV 90L 2.5 | No | -- | 114 | 17 | 4 | 2.5hp · 1Ø | 62 | 340 | 37.8L x 22.0W x 40.2H" |
Extreme SD 50L 2.0 | D400 | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 60 | 210 | 33.5L x 19.7W x 32.3H" |
Extreme SD 50L 1.5 | D400 | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 59 | 199 | 33.5L x 19.7W x 32.3H" |
Extreme SV 50L 2.0 | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 60 | 195 | 29.3L x 19.7W x 32.3H" |
Extreme SV 50L 1.5 | No | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 59 | 183 | 29.3L x 19.7W x 32.3H" |
Extreme SD 30L 2.0 | D400 | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 62 | 173 | 28.0L x 17.3W x 29.9H" |
Extreme SD 30L 1.5 | D400 | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 61 | 165 | 28.0L x 17.3W x 29.9H" |
Extreme SV 30L 2.0 | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 62 | 158 | 25.6L x 17.3W x 29.9H" |
Extreme SV 30L 1.5 | No | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 61 | 150 | 25.6L x 17.3W x 29.9H" |
Extreme 2V 50L 2hp | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 67 | 103 | 22.8L x 16.9W x 38.6H" |
Extreme 2D SIL 25L 2.0 | D400 | -- | 114 | 1.2 | 2 | 2hp · 1Ø | 67 | 106 | 27.6L x 16.9W x 30.7H" |
Extreme 3D 50L 2.0 | D400 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 112 | 33L x 17.3W x 26.8H" |
Extreme 3D 50L 1.5 | D400 | 3.5 | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 105 | 33L x 17.3W x 26.8H" |
Extreme 3V 50L 2.0 | No | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 95 | 33L x 12.2W x 26.8H" |
Extreme 3V 50L 1.5 | No | 3.5 | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 88 | 33L x 12.2W x 26.8H" |
Extreme 4D 90L 3hp | Yes | 8.8 | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 43.3L x 23.2W x 31.9H" |
Extreme 4D 90L 3hp | Yes | 6.7 | 145 | 17 | 4 | 3hp · 1Ø | 73 | 167 | 43.3L x 23.2W x 31.9H" |
Extreme 4V 90L 3hp | No | 8.8 | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 43.3L x 21.3W x 31.9H" |
Extreme 4V 90L 3hp | No | 6.7 | 145 | 17 | 4 | 3hp · 1Ø | 73 | 147 | 43.3L x 21.3W x 31.9H" |
