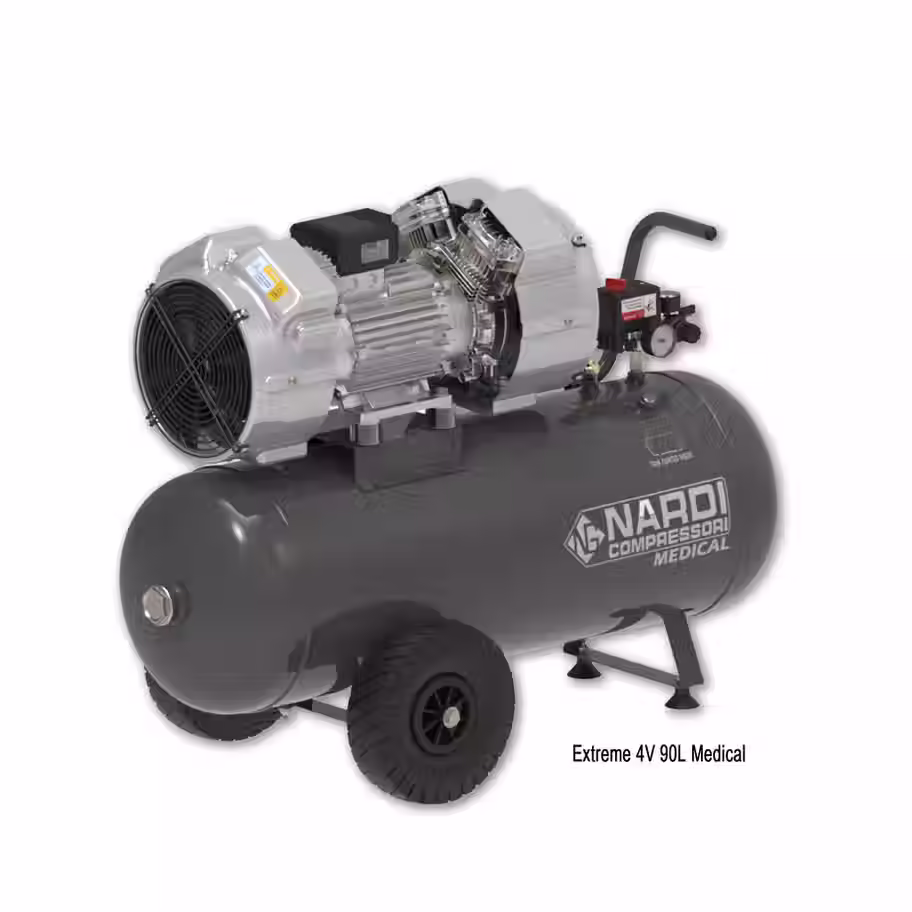

Extreme 4 V/D 90L Medical
From
Price
$1,836.00
The NARDI COMPRESSORI MEDICAL range of compressors are expertly designed and engineered by skilled technicians specifically for the dental and medical industries. Each compressor features air tanks coated internally with corrosion-resistant epoxy electrostatic powder, ensuring durability and reliability.
Equipped with advanced dryers that effectively absorb humidity, these compressors deliver clean, moisture-free air. Additionally, NARDI uses antibacterial filters to meet stringent international standards demanded by the specialized markets we serve. Built with modern, robust, and silent components, these compressors guarantee exceptional performance and reliability.
The EXTREME 4D and 4V oil-free medical compressosr by NARDI are engineered to meet the demands of the dental and medical industries, delivering clean, dry air and extended run times. This 90-liter model features a horizontal air receiver on wheels for easy mobility and is available with an efficient filtration system. Customers can choose from three in-house desiccant dryer options. Operating at a maximum pressure of 8 to 10 bar, this low-noise compressor is available in both single-phase and three-phase versions—making it a reliable and versatile solution for clinical environments.
The Extreme 4V offers all the standard features of the Extreme 4D, minus the Dryer D400. Choose from two motor sizes that deliver working pressures of 5 bar (72 psi) or 8 bar (114 psi) up to 17 CFM at 114 psi.
Key Features
- Dryer Options: Available with an activated charcoal dryer (Extreme 4D) or without a dryer (Extreme 4V).
- Robust Construction: Compressors are built with a cast aluminum case.
- Compact & Balanced: Features a light and compact design with a unique connecting rod system for perfect balance.
- Enhanced Durability: Components undergo heat treatment to extend their life and performance.
- Advanced Technology: Incorporates continuously evolving advanced compression technology.
- Premium Valves: Equipped with stainless steel valves.
- Portability: Tanks are painted to approved standards and include handles and wheels for easy transport.
- Custom-Designed Motors: Powered by reliable electric motors specifically designed and built by Nardi Compressors for each model type.
[Click to Download Medical Catalog]
Request a Quote for More Information
Click the REQUEST A QUOTE button to discuss your specific needs and get detailed information on optional equipment such as soft start, oil pump, upgraded filtering system, dual-pressure fill option, condensate collector, extra-large separators, air quality analyzers, and more.
Quantity
Tank Size
90 liters
Snail trail
Name
SKU
Description
Title
Description
SKU
Title
SKU
Title
Technical Specifications
Model | Dryer | Charging Rate (cfm) | Maximum psi | Intake (cfm) | Stg / Cyl | Power · Phase | Sound (dB) | Weight (lb) | Dimensions (inches) |
|---|---|---|---|---|---|---|---|---|---|
Extreme 2 50L 2hp | -- | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 67 | 103 | 23.2L x 16.9W x 33.5H" |
Extreme 2 50L 1.5hp | -- | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 66 | 99 | 23.2L x 16.9W x 33.5H" |
Extreme 2 50L 0.75hp | -- | -- | 114 | 7 | 2 | .75hp · 1Ø | 66 | 92.5 | 23.2L x 16.9W x 33.5H" |
Extreme 2 25L 2hp | -- | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 67 | 90 | 19.7L x 16.9W x 33.5H" |
Extreme 2 25L 1.5hp | -- | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 66 | 85 | 19.7L x 16.9W x 33.5H" |
Extreme 2 25L 0.75hp | -- | -- | 114 | 7 | 2 | .75hp · 1Ø | 66 | 79.5 | 19.7L x 16.9W x 33.5H" |
Silverstone 12/24V | No | -- | 114 | 4.2 | 1 | 24V (350W) | 74 | 15 | 13L x 5.9W x 9.1W" |
Silverstone 12/24V | No | -- | 114 | 2.1 | 1 | 24V (350W) | 74 | 15 | 13L x 5.9W x 9.1W" |
Extreme 1C 25L 1.5hp | No | -- | 145 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 73 | 21.3L x 23.6W x 32.7H" |
Extreme 1C 25L 2hp 1400 | No | -- | 145 | 12.4 | 2 | 2hp · 1Ø | 73 | 85 | 21.3L x 23.6W x 32.7H" |
Extreme 1C 25L 2hp 2800 | No | -- | 145 | 14.1 | 2 | 2hp · 1Ø | 83 | 80 | 21.3L x 23.6W x 32.7H" |
Extreme MPR 500L 6.0 | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 547 | 76.7L x 36.6W x 43.3H" |
Extreme MPR 500L 9.0 | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 650 | 76.7L x 36.6W x 43.3H" |
Extreme MPR 270L 3.0 | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 287 | 63L x 36.6W x 34.3H" |
Extreme MPR 270L 6.0 | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 425 | 63L x 36.6W x 34.3H" |
Extreme MPR 270L 9.0 | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 530 | 63L x 36.6W x 34.3H" |
Extreme SR 2.0 | D600 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 64 | 173 | 28.0L x 17.3W x 29.9H" |
Extreme 4R 90L 2.0 1Ø | D600 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 167 | 43.3L x 23.2W x 31.9H" |
Extreme 4R 90L 2.5 1Ø | D600 | 6.7 | 114 | 17 | 4 | 2.5hp · 1Ø | 73 | 189 | 43.3L x 23.2W x 31.9H" |
Extreme 4R 90L 3.0 3Ø | D600 | 8.8 | 114 | 21.2 | 4 | 3hp · 3Ø | 73 | 194 | 43.3L x 23.2W x 31.9H" |
Extreme 3R 2.0 | D600 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 112 | 34.7L x 17.3W x 26.8H" |
Extreme 2R 3.0 3Ø | D600 | 21.2 | 114 | 11 | 4 | 3hp · 3Ø | 73 | 169 | 25.2L x 17.7W x 55.1H" |
Extreme 2R 3.0 1Ø | D600 | 17.0 | 114 | 6.7 | 4 | 3hp · 1Ø | 73 | 165 | 25.2L x 17.7W x 55.1H" |
Extreme 2R 2.0 1Ø | D600 | 12.4 | 114 | 4.5 | 2 | 2hp · 1Ø | 73 | 145 | 23L x 16.9W x 55.1H" |
Extreme 2R 2.0 1Ø | D600 | 12.4 | 114 | 4.5 | 2 | 2hp · 1Ø | 73 | 112 | 23L x 16.9W x 32.7H" |
Extreme 2R 3.0 1Ø | D600 | 17.0 | 114 | 6.7 | 4 | 3hp · 1Ø | 73 | 132 | 25.2L x 17.7W x 35H" |
Extreme 2R 3.0 3Ø | D600 | 21.2 | 114 | 8.8 | 4 | 3hp · 3Ø | 73 | 136 | 25.2L x 17.7W x 35H" |
Shooting D 100 | -- | 3.5 | 4700 | -- | 4 | 4.7hp Diesel | 84 | 135 | 32.3L x 14.6W x 19.7H" |
Esprit 3 60 500W 24V | No | -- | 145 | 7.9 | 2 | 24V (500W) | 62 | 32 | 18.5L x 8.7W x 15.8H" |
Esprit 3 60 600W 12V | No | -- | 145 | 7.9 | 2 | 12V (600W) | 62 | 32 | 18.5L x 8.7W x 15.8H" |
Esprit 3 60 500W 12V | No | -- | 145 | 6.4 | 2 | 12V (500W) | 58 | 27 | 18.5L x 8.7W x 15.8H" |
Silverstone 12V | No | -- | 114 | 3.5 | 1 | 12V (450W) | 72 | 15 | 13L x 5.9W x 9.1W" |
Silverstone 12/24V | No | -- | 114 | 4.2 | 1 | 12V (350W) | 74 | 15 | 13L x 5.9W x 9.1W" |
Sany+Air | No | -- | 30 | 3.5 | 1 | .5hp · 1Ø | 72 | 18 | 19.7L x 6.7W x 12.2H" |
Extreme MPD 500L 9hp | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 650 | 76.7L x 36.6W x 43.3H" |
Extreme MPD 500L 6hp | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 547 | 76.7L x 36.6W x 43.3H" |
Extreme MPD 270L 3hp | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 287 | 63L x 36.6W x 34.3H" |
Extreme MPD 270L 6hp | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 425 | 63L x 36.6W x 34.3H" |
Extreme MPD 270L 9hp | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 530 | 63L x 36.6W x 34.3H" |
Extreme 2D 50L 1.5 | Yes | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 106 | 23L x 16.9W x 32.7H" |
Extreme 2D 50L 2.5 | Yes | -- | 114 | 6.7 | 2 | 2.5hp · 1Ø | 73 | 132 | 23L x 16.9W x 32.7H" |
Extreme 2D 50L 2.0 | Yes | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 112 | 23L x 16.9W x 32.7H" |
Extreme 2D 25L 2.0 | Yes | -- | 114 | 4.5 | 2 | 2hp · 1Ø | 72 | 97 | 23L x 16.9W x 26H" |
Extreme 2V 25L 2.0 | No | -- | 114 | 4.5 | 2 | 2hp · 1Ø | 73 | 78 | 18.1L x 16.9W x 26H" |
Extreme 2D 25L 1.5 | Yes | -- | 114 | 3.5 | 2 | 1.5hp · 1Ø | 72 | 91 | 23L x 16.9W x 26H" |
Extreme 2V 25L 1.5 | No | -- | 114 | 3.5 | 2 | 1.5hp · 1Ø | 72 | 73 | 18.1L x 16.9W x 26H" |
Pacific M Nitrox 30 | No | 10.6 | 6000 | -- | 4 | 7.5hp · 1/3Ø | 68 | 674 | 29.5L x 42.5W x 52.8H" |
Pacific MX 60 Nitrox Silenced | No | 21.2 | 6000 | -- | 4 | 15hp · 3Ø | 72 | 1080 | 33.9L x 59.1W x 68.5H" |
Pacific MX 60 Nitrox Open | No | 21.2 | 6000 | -- | 4 | 15hp · 3Ø | 72 | 1080 | 33.9L x 51.2W x 68.5H" |
Extreme MPD 500L 9.0 | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 650 | 76.7L x 36.6W x 43.3H" |
Extreme MPD 500L 6.0 | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 547 | 76.7L x 36.6W x 43.3H" |
Extreme MPV 500L 9.0 | No | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 558 | 76.7L x 25.2W x 43.3H" |
Extreme MPV 500L 6.0 | No | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 485 | 76.7L x 25.2W x 43.3H" |
Extreme SD 50L 2.0 | D400 | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 60 | 210 | 33.5L x 19.7W x 32.2H" |
Extreme SD 50L 1.5 | D400 | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 59 | 199 | 33.5L x 19.7W x 32.2H" |
Extreme SV 50L 2.0 | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 60 | 195 | 28.3L x 19.7W x 32.2H" |
Extreme SV 50L 1.5 | No | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 59 | 183 | 28.3L x 19.7W x 32.2H" |
Extreme MPD 270L 9.0 | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 530 | 63L x 36.6W x 34.3H" |
Extreme MPD 270L 6.0 | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 425 | 63L x 36.6W x 34.3H" |
Extreme MPD 270L 3.0 | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 287 | 63L x 36.6W x 34.3H" |
Extreme MPV 270L 9.0 | No | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 436 | 39.3L x 25.2W x 34.3H" |
Extreme MPV 270L 6.0 | No | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 364 | 39.3L x 25.2W x 34.3H" |
Extreme MPV 270L 3.0 | No | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 255 | 39.3L x 25.2W x 34.3H" |
Extreme SD 90L 3.0 3Ø | D600 | -- | 145 | 11 | 4 | 3hp · 3Ø | 62 | 369 | 33.8L x 22W x 43.3H" |
Extreme SD 90L 3.0 1Ø | D600 | -- | 145 | 8.5 | 4 | 3hp · 1Ø | 62 | 369 | 33.8L x 22W x 43.3H" |
Extreme SV 90L 3.0 3Ø | No | -- | 145 | 11 | 4 | 3hp · 3Ø | 62 | 342 | 33.8L x 22W x 40.2H" |
Extreme SV 90L 3.0 1Ø | No | -- | 145 | 8.5 | 4 | 3hp · 1Ø | 62 | 342 | 33.8L x 22W x 40.2H" |
Extreme 4D 90L 3.0 3Ø | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 43.3L x 21.3W x 31.9H" |
Extreme 4D 90L 3.0 1Ø | D600 | -- | 145 | 17 | 4 | 3hp · 1Ø | 73 | 167 | 43.3L x 21.3W x 31.9H" |
Extreme 4V 90L 3.0 3Ø | No | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 43.3L x 21.3W x 31.9H" |
Extreme 4V 90L 3.0 1Ø | No | -- | 145 | 17 | 4 | 3hp · 1Ø | 73 | 147 | 43.3L x 21.3W x 31.9H" |
Extreme 2D 90L 3.0 3Ø | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 77 | 170 | 29.1L x 17.7W x 55.1H" |
Extreme 2D 90L 3.0 1Ø | D600 | -- | 145 | 17 | 4 | 3hp · 1Ø | 77 | 170 | 29.1L x 17.7W x 55.1H" |
Extreme 2V 90L 3.0 3Ø | No | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 152 | 25.1L x 17.7W x 55.1H" |
Extreme 2V 90L 3.0 1Ø | No | -- | 145 | 17 | 4 | 3hp · 1Ø | 73 | 152 | 25.1L x 17.7W x 55.1H" |
Extreme SD 90L 2.5 | D400 | -- | 114 | 17 | 4 | 2.5hp · 1Ø | 62 | 340 | 37.8L x 22.0W x 40.2H" |
Extreme SV 90L 2.5 | No | -- | 114 | 17 | 4 | 2.5hp · 1Ø | 62 | 340 | 37.8L x 22.0W x 40.2H" |
Extreme SD 50L 2.0 | D400 | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 60 | 210 | 33.5L x 19.7W x 32.3H" |
Extreme SD 50L 1.5 | D400 | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 59 | 199 | 33.5L x 19.7W x 32.3H" |
Extreme SV 50L 2.0 | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 60 | 195 | 29.3L x 19.7W x 32.3H" |
Extreme SV 50L 1.5 | No | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 59 | 183 | 29.3L x 19.7W x 32.3H" |
Extreme SD 30L 2.0 | D400 | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 62 | 173 | 28.0L x 17.3W x 29.9H" |
Extreme SD 30L 1.5 | D400 | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 61 | 165 | 28.0L x 17.3W x 29.9H" |
Extreme SV 30L 2.0 | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 62 | 158 | 25.6L x 17.3W x 29.9H" |
Extreme SV 30L 1.5 | No | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 61 | 150 | 25.6L x 17.3W x 29.9H" |
Extreme 2V 50L 2hp | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 67 | 103 | 22.8L x 16.9W x 38.6H" |
Extreme 2D SIL 25L 2.0 | D400 | -- | 114 | 1.2 | 2 | 2hp · 1Ø | 67 | 106 | 27.6L x 16.9W x 30.7H" |
Extreme 3D 50L 2.0 | D400 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 112 | 33L x 17.3W x 26.8H" |
Extreme 3D 50L 1.5 | D400 | 3.5 | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 105 | 33L x 17.3W x 26.8H" |
Extreme 3V 50L 2.0 | No | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 95 | 33L x 12.2W x 26.8H" |
Extreme 3V 50L 1.5 | No | 3.5 | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 88 | 33L x 12.2W x 26.8H" |
Extreme 4D 90L 3hp | Yes | 8.8 | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 43.3L x 23.2W x 31.9H" |
Extreme 4D 90L 3hp | Yes | 6.7 | 145 | 17 | 4 | 3hp · 1Ø | 73 | 167 | 43.3L x 23.2W x 31.9H" |
Extreme 4V 90L 3hp | No | 8.8 | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 43.3L x 21.3W x 31.9H" |
Extreme 4V 90L 3hp | No | 6.7 | 145 | 17 | 4 | 3hp · 1Ø | 73 | 147 | 43.3L x 21.3W x 31.9H" |
Extreme 2D 90L 3hp | Yes | 8.8 | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 29.1L x 17.7W x 55.1H" |
Extreme 2D 90L 3hp | Yes | 6.7 | 145 | 17 | 4 | 3hp · 1Ø | 73 | 170 | 29.1L x 17.7W x 55.1H" |
Extreme 2V 90L 3hp | No | 8.8 | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 152 | 25.2L x 17.7W x 55.1H" |
Extreme 2V 90L 3hp | No | 6.7 | 145 | 17 | 4 | 3hp · 1Ø | 73 | 152 | 25.2L x 17.7W x 55.1H" |
Extreme 3 30L 24V | No | -- | 145 | 8.8 | 2 | 24V (800W) | 72 | 62 | 29.5L x 11.8W x 23.6H" |
Extreme 3 30L 12V | No | -- | 145 | 8.8 | 2 | 12V (800W) | 72 | 62 | 29.5L x 11.8W x 23.6H" |
Extreme 3 7L 12V | No | -- | 145 | 8.8 | 2 | 12V (800W) | 72 | 50 | 16.1L x 15.7W x 15.7H" |
Extreme 3 7L 24V | No | -- | 145 | 8.8 | 2 | 24V (800W) | 72 | 50 | 16.1L x 15.7W x 15.7H" |
Extreme 2D 2.5hp | Yes | 6.7 | 114 | 17 | 2 | 2.5hp · 1Ø | 73 | 132 | 23L x 16.9W x 32.7H" |
Extreme 2V 2.5hp | No | 6.7 | 114 | 17 | 2 | 2.5hp · 1Ø | 73 | 115 | 18.1L x 16.9W x 32.7H" |
Extreme 2D 2.0hp | Yes | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 112 | 23L x 16.9W x 32.7H" |
Extreme 2V 2.0hp | No | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 94 | 18.1L x 16.9W x 32.7H" |
Extreme 2D 1.5hp | Yes | 3.5 | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 106 | 23L x 16.9W x 32.7H" |
Extreme 2V 1.5hp | No | 3.5 | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 87 | 18.1L x 16.9W x 32.7H" |
Extreme 2V 1.5hp | No | 3.5 | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 73 | 18.1L x 16.9W x 32.7H" |
Extreme 2V 2hp | No | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 78 | 78 | 18.1L x 16.9W x 32.7H" |
Extreme 5G Hookah 70 | No | -- | 145 | 13.4 | 2 | 3hp 70mm Gas | 82 | 59 | 16.5L x 17.7W x 17.7H" |
Extreme 5G Hookah 60 | No | -- | 145 | 9.5 | 2 | 3hp 60mm Gas | 85 | 56 | 16.5L x 17.7W x 17.7H" |
Extreme 3 Hookah 24V | No | -- | 145 | 9.9 | 2 | 24V (800W) | 72 | 50 | 16.1L x 15.7W x 17.3H" |
Extreme 3 Hookah 12V | No | -- | 145 | 9.2 | 2 | 12V (800W) | 72 | 50 | 16.1L x 15.7W x 17.3H" |
Extreme 3T Hookah 2hp | No | -- | 145 | 12.4 | 2 | 2hp · 1Ø | 73 | 60 | 22.8L x 12.2W x 15.4H" |
Extreme 3T Hookah 1.5hp | No | -- | 145 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 51 | 20.8L x 12.2W x 15.4H" |
Esprit 3T Hookah 60 24V 500W | No | -- | 145 | 7.9 | 2 | 24V (500W) | 62 | 32 | 17.7L x 9.4W x 11W" |
Esprit 3T Hookah 60 12V 600W | No | -- | 145 | 7.9 | 2 | 12V (600W) | 62 | 32 | 17.7L x 9.4W x 11W" |
Esprit 3T Hookah 60 12V 500W | No | -- | 145 | 6.4 | 2 | 12V (500W) | 58 | 27 | 17.7L x 9.4W x 11W" |
Esprit 3T Hookah 60/2 | No | -- | 145 | 7.4 | 2 | .75hp · 1Ø | 62 | 29 | 17.7L x 9.4W x 11W" |
Pacific MX 85 | No | 30 | 4786 | -- | 4 | 25hp · 3Ø | 75 | 1367 | 33.9L x 61.4W x 68.1H" |
Pacific MX 68 | No | 24 | 4786 | -- | 4 | 20hp · 3Ø | 75 | 1146 | 33.9L x 61.4W x 68.1H" |
Pacific MX 60/4 | No | 21.2 | 4786 | -- | 4 | 15hp · 3Ø | 72 | 1146 | 33.9L x 61.4W x 68.1H" |
Pacific MX 60 | No | 21.2 | 4786 | -- | 3 | 15hp · 3Ø | 75 | 1102 | 33.9L x 61.4W x 68.1H" |
Pacific MX 50 | No | 17.7 | 4786 | -- | 3 | 15hp · 3Ø | 72 | 1014 | 33.9L x 61.4W x 68.1H" |
Pacific CX 85 | -- | 30 | 4786 | -- | 3 | 25hp · 3Ø | 77 | 1256 | 33L x 29.5W x 55.9H" |
Pacific CX 68 | -- | 24 | 4786 | -- | 3 | 20hp · 3Ø | 75 | 1036 | 33L x 29.5W x 55.9H" |
Pacific CX 60 | -- | 21.2 | 4786 | -- | 3 | 15hp · 3Ø | 73 | 926 | 33L x 29.5W x 55.9H" |
Pacific CX 50 | -- | 17.7 | 4786 | -- | 3 | 15hp · 3Ø | 72 | 882 | 33L x 29.5W x 55.9H" |
Pacific M 30 Nitrox | No | 10.6 | 4786 | -- | 4 | 7.5hp | 68 | 674 | 46.5L x 42.5W x 52.8H" |
Pacific PG 35 | No | 12.4 | 4786 | -- | 4 | 10hp Gas | 81 | 282 | 46.5L x 21.3W x 27.1H" |
Pacific PG 30 | No | 10.6 | 4786 | -- | 3 | 10hp Gas | 79 | 271 | 46.5L x 21.3W x 27.1H" |
Pacific PG 27 | No | 9.5 | 4786 | -- | 3 | 9hp Gas | 80 | 249 | 46.5L x 21.3W x 27.1H" |
Pacific PG 23 | No | 8.1 | 4786 | -- | 3 | 9hp Gas | 79 | 249 | 46.5L x 21.3W x 27.1H" |
Pacific P 35 | No | 12.4 | 4786 | -- | 4 | 10hp · 3Ø | 78 | 313 | 46.4L x 21.3W x 27.2H" |
Pacific P 30 | No | 10.6 | 4786 | -- | 3 | 7.5hp · 3Ø | 75 | 302 | 46.4L x 21.3W x 27.2H" |
Pacific P 27 | No | 9.5 | 4786 | -- | 3 | 7.5hp · 3Ø | 76 | 302 | 46.4L x 21.3W x 27.2H" |
Pacific P 23 | No | 8.1 | 4786 | -- | 3 | 5.5hp · 3Ø | 75 | 300 | 46.4L x 21.3W x 27.2H" |
Pacific P 16 | No | 5.6 | 4786 | -- | 3 | 4hp · 1Ø | 74 | 300 | 46.4L x 21.3W x 27.2H" |
CNG 3.8 | No | 8.2 | 5076 | 50–500 mbar | 3 | 7.5hp | 65 | 510 | 29.5L x 33.5W x 43.3H" |
CNG 2.8 | No | 6 | 5076 | 50–500 mbar | 3 | 5.5hp | 65 | 475 | 29.5L x 33.5W x 43.3H" |
CNG 1.0 | No | 2.1 | 5076 | 50–500 mbar | 3 | 4hp | 62 | 450 | 29.5L x 33.5W x 43.3H" |
CNG 5.0 | No | 10.6 | 5076 | 50–650 mbar | 3 | 10hp | 65 | 610 | 31.5L x 43.3W x 55.1H" |
Pacific 30 Block | -- | 10.6 | 4786 | -- | 4 | -- | -- | -- | |
Pacific 27 Block | -- | 9.5 | 4786 | -- | 4 | -- | -- | -- | |
Pacific 23 Block | -- | 8.1 | 4786 | -- | 4 | -- | -- | -- | |
Pacific 16 Block | -- | 5.6 | 4786 | -- | 4 | -- | -- | -- | |
Atlantic 100 Block | No | 3.5 | 4786 | -- | 4 | -- | -- | -- | |
Atlantic 60 Block | No | 2.1 | 4786 | -- | 4 | -- | -- | -- | |
Extreme 4 3HP Ph3 60Hz | No | -- | 145 | 25.5 | 4 | 3hp · 3Ø | 73 | 73 | 25.2L x 11W x 8.3H" |
Extreme 4 3HP Ph3 50Hz | No | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 73 | 25.2L x 11W x 8.3H" |
Extreme 4 3HP 60Hz | No | -- | 145 | 25.5 | 4 | 3hp · 1Ø | 73 | 73 | 25.2L x 11W x 8.3H" |
Extreme 4 3HP 50Hz | No | -- | 145 | 21.2 | 4 | 3hp · 1Ø | 73 | 73 | 25.2L x 11W x 8.3H" |
Extreme 4 2.5HP 60Hz | No | -- | 145 | 20 | 4 | 2.5hp · 1Ø | 73 | 66 | 24L x 11W x 8.3H" |
Extreme 4 2.5HP 50Hz | No | -- | 145 | 17 | 4 | 2.5hp · 1Ø | 73 | 66 | 24L x 11W x 8.3H" |
Extreme 70 2HP 50Hz | No | -- | 145 | 12.4 | 2 | 2hp · 3Ø | 73 | 44 | 16.9L x 11W x 11.4H" |
Extreme 70 2HP 60Hz | No | -- | 145 | 14.8 | 2 | 2hp · 3Ø | 73 | 44 | 16.9L x 11W x 11.4H" |
Extreme 70 2HP 60Hz | No | -- | 145 | 14.8 | 2 | 2hp · 3Ø | 73 | 44 | 16.9L x 11W x 11.4H" |
Extreme 70 2HP 50Hz | No | -- | 145 | 12.4 | 2 | 2hp · 3Ø | 73 | 44 | 16.9L x 11W x 11.4H" |
Extreme 60 1.5HP 60Hz | No | -- | 145 | 10.1 | 2 | 1.5hp · 1Ø | 72 | 36 | 15.3L x 15.0W x 10.2H" |
Extreme 60 1.5HP 50Hz | No | -- | 145 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 36 | 15.3L x 15.0W x 10.2H" |
Esprit 60/2 60Hz | No | -- | 114 | 8.8 | 2 | .75hp · 1Ø | 55 | 17 | 11.4L x 8.7W x 5.5H" |
Esprit 60/2 50Hz | No | -- | 114 | 7.4 | 2 | .75hp · 1Ø | 55 | 17 | 11.4L x 8.7W x 5.5H" |
Esprit 60/4 60Hz | No | -- | 114 | 4.4 | 2 | .75hp · 1Ø | 48 | 17 | 11.4L x 8.7W x 5.5H" |
Esprit 60/4 50Hz | No | -- | 114 | 3.7 | 2 | .75hp · 1Ø | 48 | 17 | 11.4L x 8.7W x 5.5H" |
Super Extreme 1 20L 30bar | No | -- | 435 | 4.6 | 2 | 2.2hp · 1Ø | 72 | 102 | 21.3L x 23.6W x 32.7H" |
Super Extreme 1 TN 18L | No | -- | 435 | 4.6 | 2 | 2.2hp · 1Ø | 72 | 75 | 26.4L x 25.6W x 18.9H" |
Super Extreme TN 18L 30 bar | No | -- | 435 | 4.6 | 2 | 2.2hp · 1Ø | 72 | 75 | 24.4L x 19.7W x 15.7H" |
Extreme 3T 2hp 1400 | No | -- | 145 | 12.4 | 2 | 2hp · 1Ø | 73 | 60 | 22.8L x 12.2W x 15.4H" |
Extreme 3T 5L 2hp | No | -- | 145 | 14.1 | 2 | 2hp · 1Ø | 82 | 58 | 20.9L x 12.2W x 15.4H" |
Extreme 3T 5L 1.5hp 15 bar | No | -- | 217 | 4 | 2 | 1.5hp · 1Ø | 72 | 51 | 20.9L x 12.2W x 15.4H" |
Extreme 3T 5L 1.5hp | No | -- | 145 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 51 | 20.9L x 12.2W x 15.4H" |
Extreme 3T 5L 0.75hp | No | -- | 145 | 7 | 2 | .75hp · 1Ø | 72 | 45 | 20.9L x 12.2W x 15.4H" |
Esprit Sil. 5L 60/2 | No | -- | 145 | 7.4 | 2 | .75hp · 1Ø | 55 | 44.1 | 16.1L x 9.8W x 15.4H" |
Esprit Sil. 5L 60/4 | No | -- | 145 | 3.7 | 2 | .75hp · 1Ø | 48 | 44.1 | 16.1L x 9.8W x 15.4H" |
Esprit 1 10L 60/2 | No | -- | 145 | 7.4 | 2 | .75hp · 1Ø | 62 | 37.5 | 16.1L x 13.8W x 26.8H" |
Esprit 1 10L 60/4 | No | -- | 145 | 8.8 | 2 | .75hp · 1Ø | 63 | 37.5 | 16.1L x 13.8W x 26.8H" |
Esprit 3 15L 60/2 | No | -- | 145 | 7.4 | 2 | .75hp · 1Ø | 62 | 39.7 | 18.5L x 8.7W x 15.7H" |
Esprit 3 15L 60/4 | No | -- | 145 | 3.7 | 2 | .75hp · 1Ø | 52 | 39.7 | 18.5L x 8.7W x 15.7H" |
Silverstone 2 450W 24V | No | -- | 114 | 4.2 | 1 | 24V (350W) | 74 | 22 | 16.1L x 5.9W x 15.4H" |
Silverstone 2 350W 12V | No | -- | 114 | 2.1 | 1 | 12V (350W) | 74 | 22 | 16.1L x 5.9W x 15.4H" |
Silverstone 2 450W 12V | No | -- | 114 | 3.5 | 1 | 12V (450W) | 72 | 22 | 16.1L x 5.9W x 15.4H" |
Esprit 3T 60 500W 12V | No | -- | 145 | 6.4 | 2 | 12V (500W) | 58 | 27 | 17.7L x 9.5W x 11H" |
Esprit 3T 60 600W 12V | No | -- | 145 | 7.9 | 2 | 12V (600W) | 62 | 32 | 17.7L x 9.5W x 11H" |
Esprit 3T 60 500W 24V | No | -- | 145 | 7.9 | 2 | 24V (500W) | 62 | 32 | 17.7L x 9.5W x 11H" |
Esprit 3T 60/4 | No | -- | 145 | 7.4 | 2 | .75hp · 1Ø | 62 | 29 | 17.7L x 9.4W x 11H" |
Esprit 3T 60/2 | No | -- | 145 | 3.7 | 2 | .75hp · 1Ø | 52 | 29 | 17.7L x 9.4W x 11H" |
Silverstone 2 | No | -- | 114 | 3.5 | 1 | .5hp · 1Ø | 72 | 22 | 16.1L x 5.9W x 15.4H" |
Esprit 2V 25L 60/2 25L | No | 1.8 | 114 | 7.4 | 2 | .75hp · 1Ø | 62 | 51 | 16.1L x 17.7W x 20.5H" |
Esprit 2V 25L 60/4 25L | No | 0.7 | 114 | 3.7 | 2 | .75hp · 1Ø | 52 | 51 | 16.1L x 17.7W x 20.5H" |
Extreme 2V 25L 1.5 | No | 3.5 | 114 | 8.5 | 2 | 1.5hp· 1Ø | 72 | 73 | 18.1L x 16.9W x 32.7H" |
Shooting G 100 | No | 3.5 | 4700 | -- | 4 | 6hp Gas | 84 | 93 | 29.9L x 16.1W x 16.1H" |
Shooting P 100/3 | No | 3.5 | 4700 | -- | 4 | 4hp · 3Ø | 79 | 93 | 22.8L x 16.1W x 16.1H" |
Shooting P 100/1 | No | 3.5 | 4700 | -- | 4 | 3hp · 1Ø | 79 | 93 | 22.8L x 16.1W x 16.1H" |
Shooting P 60/1 | No | 2.1 | 4700 | -- | 4 | 2hp · 1Ø | 76 | 87 | 22.8L x 16.1W x 16.1H" |
Extreme Robin 70 6hp | No | -- | 217 | 12.6 | 2 | 6hp Gas | 85 | 39 | 21.7L x 11.4W x 13H" |
Extreme Robin 60 6hp | No | -- | 145 | 19 | 2 | 6hp Gas | 85 | 39 | 21.7L x 11.4W x 13H" |
Extreme Robin 70 3hp | No | -- | 145 | 13.4 | 2 | 3hp Gas | 85 | 29 | 17.7L x 9.4W x 11H" |
Extreme Robin 60 3hp | No | -- | 145 | 9.5 | 2 | 3hp Gas | 85 | 29 | 17.7L x 9.4W x 11H" |
Related Products
Name
Name
Name
bottom of page
