Pacific M Nitrox High Pressure Compressor
SKU Pacific M Nitrox
Price
$0.00
The NITROX range by NARDI COMPRESSORI includes models specifically designed to work with NITROX and TRIMIX blends, offering reliable performance even under demanding conditions.

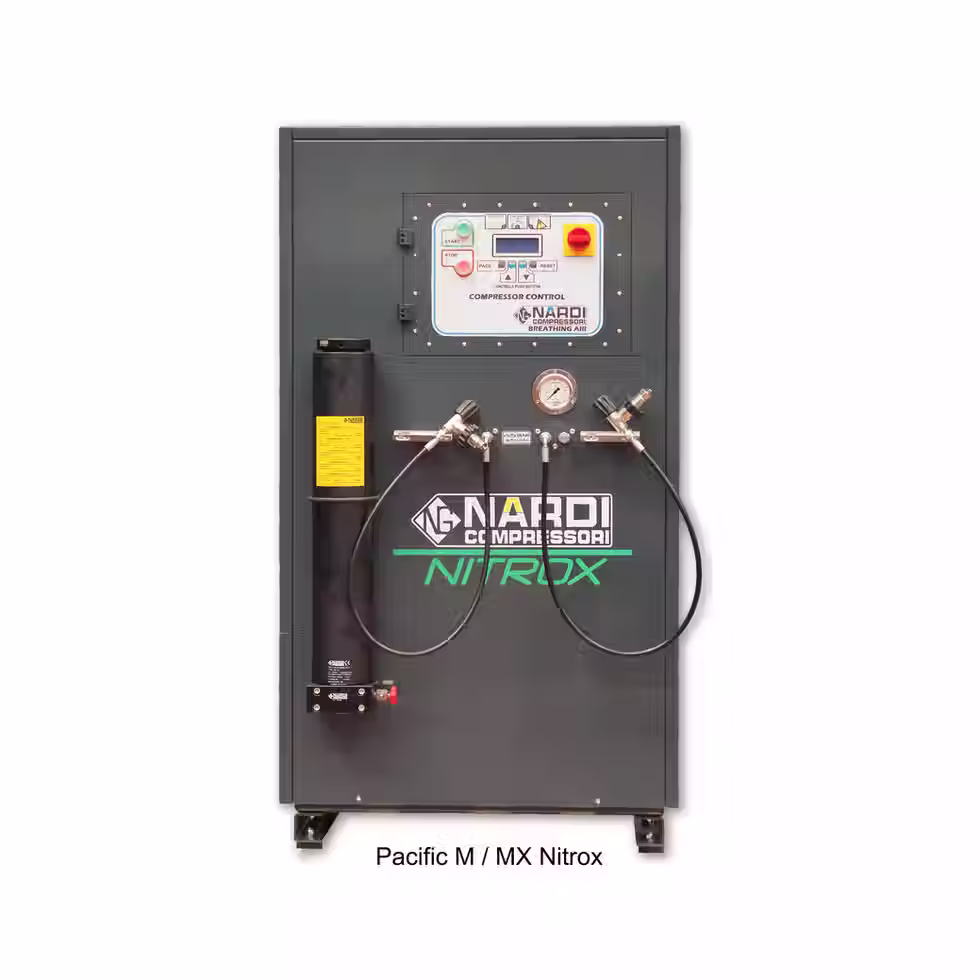

The PACIFIC M NITROX is a silent, high-pressure, four-stage breathing air compressor built to withstand outdoor installations, even in harsh climates. NARDI has meticulously refined every detail to ensure optimal ventilation of the pumping block while minimizing vibrations. This model features a robust four-stage pump unit with a capacity of 300 L/min (10.6 cfm), along with pressure and temperature sensors on all stages. It is equipped with the NARDI control panel, which includes multilingual software allowing end users to easily monitor parameters and track the machine's status. Pressure and temperature sensors on all stages are a standard feature of the PACIFIC M NITROX.
Optional Equipment
- Upgrade to Single-Phase Motor
- Soft Start
- Filtering System (PAC3 upgrade from PAC2)
- Double Pressure
- Additional Hose Connections
- Reduction Connection DIN / INT-YOKE only for 225 bar/3200 psi with connection DIN (each piece)
- Eco-Friendly Condensate Collecting Container/Tank (12L)
- Air Quality Analyzer/s (carbon monoxide, carbon dioxide, humidity, oxygen, VOC)
[Click to Download Pacific M Nitrox Brochure]
Request a Quote for More Information
Click the REQUEST A QUOTE button to discuss your specific needs and get detailed information on optional equipment. Certain compressors and compressor components are manufactured to order at the Nardi Compressori headquarters in Italy. Once ordered, the Nardi Americas team will notify you with an estimated delivery date.
Quantity
Filtration Model
PAC2
Snail trail
Name
SKU
Description
Title
Description
SKU
Title
SKU
Title
Technical Specifications
Model | Dryer | Charging Rate (cfm) | Maximum psi | Intake (cfm) | Stg / Cyl | Power · Phase | Sound (dB) | Weight (lb) | Dimensions (inches) |
|---|---|---|---|---|---|---|---|---|---|
Hookah Pro | No | -- | 145 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 53 | 19.7L x 11.8W x 16.5H” |
Nardi ONE 85 | No | 30 | 6000 | -- | 4 | 25hp · 3Ø | 2866 | 90.6L x 34.1W x 71.7H" | |
Nardi ONE 68 | No | 24.0 | 6000 | -- | 4 | 20hp · 3Ø | 2646 | 90.6L x 34.1W x 71.7H" | |
Nardi ONE 60/4 | No | 21.2 | 6000 | -- | 4 | 15hp · 3Ø | 2646 | 90.6L x 34.1W x 71.7H" | |
Nardi ONE 60 | No | 21.2 | 6000 | -- | 3 | 15hp · 3Ø | 2601 | 90.6L x 34.1W x 71.7H" | |
Nardi ONE 50 | No | 17.7 | 6000 | -- | 3 | 15hp · 3Ø | 2513 | 90.6L x 34.1W x 71.7H" | |
Extreme 5G Fibre | No | -- | 145 | 9.5 | 2 | 3hp Gas | 85 | 56 | 20.1L x 12.2W x 16.5H" |
Extreme 5E Fibre | No | -- | 145 | 9.5 | 2 | 1.5hp · 1Ø | 72 | 54 | 20.1L x 11.4W x 15.8H" |
Extreme 2 50L 2hp | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 67 | 103 | 23.2L x 16.9W x 33.5H" |
Extreme 2 50L 1.5hp | No | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 66 | 99 | 23.2L x 16.9W x 33.5H" |
Extreme 2 50L 0.75hp | No | -- | 114 | 7 | 2 | .75hp · 1Ø | 66 | 92.5 | 23.2L x 16.9W x 33.5H" |
Extreme 2 25L 2hp | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 67 | 90 | 19.7L x 16.9W x 33.5H" |
Extreme 2 25L 1.5hp | No | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 66 | 85 | 19.7L x 16.9W x 33.5H" |
Extreme 2 25L 0.75hp | No | -- | 114 | 7 | 2 | .75hp · 1Ø | 66 | 79.5 | 19.7L x 16.9W x 33.5H" |
Silverstone 24V 350W | No | -- | 114 | 4.2 | 1 | 350W · 24V | 74 | 15.4 | 13L x 5.9W x 9W" |
Extreme 1C 25L 1.5hp | No | -- | 145 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 73 | 21.3L x 23.6W x 32.7H" |
Extreme 1C 25L 2hp 1400 | No | -- | 145 | 12.4 | 2 | 2hp · 1Ø | 73 | 85 | 21.3L x 23.6W x 32.7H" |
Extreme 1C 25L 2hp 2800 | No | -- | 145 | 14.1 | 2 | 2hp · 1Ø | 83 | 80 | 21.3L x 23.6W x 32.7H" |
Extreme MPR 500L 6.0 | D600 | 18 | 116 | 42.4 | 8 | 6hp · 3Ø | 74 | 547 | 76.7L x 36.6W x 43.3H" |
Extreme MPR 500L 9.0 | D600 | 27 | 116 | 63.6 | 12 | 9hp · 3Ø | 75 | 650 | 76.7L x 36.6W x 43.3H" |
Extreme MPR 270L 3.0 | D600 | 8.8 | 114 | 21.2 | 4 | 3hp · 3Ø | 73 | 287 | 63L x 36.6W x 34.3H" |
Extreme MPR 270L 6.0 | D600 | 18 | 114 | 42.4 | 8 | 6hp · 3Ø | 74 | 425 | 63L x 36.6W x 34.3H" |
Extreme MPR 270L 9.0 | D600 | 27 | 114 | 63.6 | 12 | 9hp · 3Ø | 75 | 530 | 63L x 36.6W x 34.3H" |
Extreme SR 2.0 | D600 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 64 | 173 | 28.0L x 17.3W x 29.9H" |
Extreme 4R 90L 2.0 1Ø | D600 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 167 | 43.3L x 23.2W x 31.9H" |
Extreme 4R 90L 2.5 1Ø | D600 | 6.7 | 114 | 17 | 4 | 2.5hp · 1Ø | 73 | 189 | 43.3L x 23.2W x 31.9H" |
Extreme 4R 90L 3.0 3Ø | D600 | 8.8 | 114 | 21.2 | 4 | 3hp · 3Ø | 73 | 194 | 43.3L x 23.2W x 31.9H" |
Extreme 3R 2.0 | D600 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 112 | 34.7L x 17.3W x 26.8H" |
Extreme 2R 3.0 3Ø | D600 | 8.8 | 114 | 21.2 | 4 | 3hp · 3Ø | 73 | 169 | 25.2L x 17.7W x 55.1H" |
Extreme 2R 3.0 1Ø | D600 | 17.0 | 114 | 6.7 | 4 | 3hp · 1Ø | 73 | 165 | 25.2L x 17.7W x 55.1H" |
Extreme 2R 2.0 1Ø | D600 | 12.4 | 114 | 4.5 | 2 | 2hp · 1Ø | 73 | 145 | 23L x 16.9W x 55.1H" |
Extreme 2R 2.0 1Ø | D600 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 112 | 23L x 16.9W x 32.7H" |
Extreme 2R 3.0 1Ø | D600 | 6.7 | 114 | 17.0 | 4 | 3hp · 1Ø | 73 | 132 | 25.2L x 17.7W x 35H" |
Extreme 2R 3.0 3Ø | D600 | 8.8 | 114 | 21.2 | 4 | 3hp · 3Ø | 73 | 136 | 25.2L x 17.7W x 35H" |
Shooting D 100 | -- | 3.5 | 4700 | -- | 4 | 4.7hp Diesel | 84 | 135 | 32.3L x 14.6W x 19.7H" |
Esprit 3 60 500W 24V | No | -- | 145 | 7.9 | 2 | 24V (500W) | 62 | 32 | 18.5L x 8.7W x 15.8H" |
Esprit 3 60 600W 12V | No | -- | 145 | 7.9 | 2 | 12V (600W) | 62 | 32 | 18.5L x 8.7W x 15.8H" |
Esprit 3 60 500W 12V | No | -- | 145 | 6.4 | 2 | 12V (500W) | 58 | 27 | 18.5L x 8.7W x 15.8H" |
Sany+Air | No | -- | 30 | 3.5 | 1 | .5hp · 1Ø | 72 | 18 | 19.7L x 6.7W x 12.2H" |
Extreme MPD 500L 9hp | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 650 | 76.7L x 36.6W x 43.3H" |
Extreme MPD 500L 6hp | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 547 | 76.7L x 36.6W x 43.3H" |
Extreme MPD 270L 3hp | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 287 | 63L x 36.6W x 34.3H" |
Extreme MPD 270L 6hp | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 425 | 63L x 36.6W x 34.3H" |
Extreme MPD 270L 9hp | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 530 | 63L x 36.6W x 34.3H" |
Extreme 2D 50L 1.5 | Yes | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 106 | 23L x 16.9W x 32.7H" |
Extreme 2D 50L 2.5 | Yes | -- | 114 | 6.7 | 2 | 2.5hp · 1Ø | 73 | 132 | 23L x 16.9W x 32.7H" |
Extreme 2D 50L 2.0 | Yes | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 112 | 23L x 16.9W x 32.7H" |
Extreme 2D 25L 2.0 | Yes | -- | 114 | 4.5 | 2 | 2hp · 1Ø | 72 | 97 | 23L x 16.9W x 26H" |
Extreme 2V 25L 2.0 | No | -- | 114 | 4.5 | 2 | 2hp · 1Ø | 73 | 78 | 18.1L x 16.9W x 26H" |
Extreme 2D 25L 1.5 | Yes | -- | 114 | 3.5 | 2 | 1.5hp · 1Ø | 72 | 91 | 23L x 16.9W x 26H" |
Extreme 2V 25L 1.5 | No | -- | 114 | 3.5 | 2 | 1.5hp · 1Ø | 72 | 73 | 18.1L x 16.9W x 26H" |
Pacific M Nitrox 30 | No | 10.6 | 6000 | -- | 4 | 7.5hp · 1/3Ø | 68 | 674 | 29.5L x 42.5W x 52.8H" |
Pacific MX 60 Nitrox Silenced | No | 21.2 | 6000 | -- | 4 | 15hp · 3Ø | 72 | 1080 | 33.9L x 59.1W x 68.5H" |
Pacific MX 60 Nitrox Open | No | 21.2 | 6000 | -- | 4 | 15hp · 3Ø | 72 | 1080 | 33.9L x 51.2W x 68.5H" |
Extreme MPD 500L 9.0 | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 650 | 76.7L x 36.6W x 43.3H" |
Extreme MPD 500L 6.0 | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 547 | 76.7L x 36.6W x 43.3H" |
Extreme MPV 500L 9.0 | No | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 558 | 76.7L x 25.2W x 43.3H" |
Extreme MPV 500L 6.0 | No | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 485 | 76.7L x 25.2W x 43.3H" |
Extreme SD 50L 2.0 | D400 | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 60 | 210 | 33.5L x 19.7W x 32.2H" |
Extreme SD 50L 1.5 | D400 | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 59 | 199 | 33.5L x 19.7W x 32.2H" |
Extreme SV 50L 2.0 | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 60 | 195 | 28.3L x 19.7W x 32.2H" |
Extreme SV 50L 1.5 | No | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 59 | 183 | 28.3L x 19.7W x 32.2H" |
Extreme MPD 270L 9.0 | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 530 | 63L x 36.6W x 34.3H" |
Extreme MPD 270L 6.0 | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 425 | 63L x 36.6W x 34.3H" |
Extreme MPD 270L 3.0 | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 287 | 63L x 36.6W x 34.3H" |
Extreme MPV 270L 9.0 | No | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 436 | 39.3L x 25.2W x 34.3H" |
Extreme MPV 270L 6.0 | No | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 364 | 39.3L x 25.2W x 34.3H" |
Extreme MPV 270L 3.0 | No | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 255 | 39.3L x 25.2W x 34.3H" |
Extreme SD 90L 3.0 3Ø | D600 | -- | 145 | 11 | 4 | 3hp · 3Ø | 62 | 369 | 33.8L x 22W x 43.3H" |
Extreme SD 90L 3.0 1Ø | D600 | -- | 145 | 8.5 | 4 | 3hp · 1Ø | 62 | 369 | 33.8L x 22W x 43.3H" |
Extreme SV 90L 3.0 3Ø | No | -- | 145 | 11 | 4 | 3hp · 3Ø | 62 | 342 | 33.8L x 22W x 40.2H" |
Extreme SV 90L 3.0 1Ø | No | -- | 145 | 8.5 | 4 | 3hp · 1Ø | 62 | 342 | 33.8L x 22W x 40.2H" |
Extreme 4D 90L 3.0 3Ø | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 43.3L x 21.3W x 31.9H" |
Extreme 4D 90L 3.0 1Ø | D600 | -- | 145 | 17 | 4 | 3hp · 1Ø | 73 | 167 | 43.3L x 21.3W x 31.9H" |
Extreme 4V 90L 3.0 3Ø | No | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 43.3L x 21.3W x 31.9H" |
Extreme 4V 90L 3.0 1Ø | No | -- | 145 | 17 | 4 | 3hp · 1Ø | 73 | 147 | 43.3L x 21.3W x 31.9H" |
Extreme 2D 90L 3.0 3Ø | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 77 | 170 | 29.1L x 17.7W x 55.1H" |
Extreme 2D 90L 3.0 1Ø | D600 | -- | 145 | 17 | 4 | 3hp · 1Ø | 77 | 170 | 29.1L x 17.7W x 55.1H" |
Extreme 2V 90L 3.0 3Ø | No | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 152 | 25.1L x 17.7W x 55.1H" |
Extreme 2V 90L 3.0 1Ø | No | -- | 145 | 17 | 4 | 3hp · 1Ø | 73 | 152 | 25.1L x 17.7W x 55.1H" |
Extreme SD 90L 2.5 | D400 | -- | 114 | 17 | 4 | 2.5hp · 1Ø | 62 | 340 | 37.8L x 22.0W x 40.2H" |
Extreme SV 90L 2.5 | No | -- | 114 | 17 | 4 | 2.5hp · 1Ø | 62 | 340 | 37.8L x 22.0W x 40.2H" |
Extreme SD 50L 2.0 | D400 | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 60 | 210 | 33.5L x 19.7W x 32.3H" |
Extreme SD 50L 1.5 | D400 | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 59 | 199 | 33.5L x 19.7W x 32.3H" |
Extreme SV 50L 2.0 | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 60 | 195 | 29.3L x 19.7W x 32.3H" |
Extreme SV 50L 1.5 | No | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 59 | 183 | 29.3L x 19.7W x 32.3H" |
Extreme SD 30L 2.0 | D400 | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 62 | 173 | 28.0L x 17.3W x 29.9H" |
Extreme SD 30L 1.5 | D400 | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 61 | 165 | 28.0L x 17.3W x 29.9H" |
Extreme SV 30L 2.0 | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 62 | 158 | 25.6L x 17.3W x 29.9H" |
Extreme SV 30L 1.5 | No | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 61 | 150 | 25.6L x 17.3W x 29.9H" |
Extreme 2V 50L 2hp | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 67 | 103 | 22.8L x 16.9W x 38.6H" |
Extreme 2D SIL 25L 2.0 | D400 | -- | 114 | 1.2 | 2 | 2hp · 1Ø | 67 | 106 | 27.6L x 16.9W x 30.7H" |
Extreme 3D 50L 2.0 | D400 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 112 | 33L x 17.3W x 26.8H" |
Extreme 3D 50L 1.5 | D400 | 3.5 | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 105 | 33L x 17.3W x 26.8H" |
Extreme 3V 50L 2.0 | No | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 95 | 33L x 12.2W x 26.8H" |
Extreme 3V 50L 1.5 | No | 3.5 | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 88 | 33L x 12.2W x 26.8H" |
Extreme 4D 90L 3hp | Yes | 8.8 | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 43.3L x 23.2W x 31.9H" |
Extreme 4D 90L 3hp | Yes | 6.7 | 145 | 17 | 4 | 3hp · 1Ø | 73 | 167 | 43.3L x 23.2W x 31.9H" |
Extreme 4V 90L 3hp | No | 8.8 | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 43.3L x 21.3W x 31.9H" |
Extreme 4V 90L 3hp | No | 6.7 | 145 | 17 | 4 | 3hp · 1Ø | 73 | 147 | 43.3L x 21.3W x 31.9H" |
