Pacific P Electric High-Pressure Breathing Air Compressor

The NARDI PACIFIC Breathing Air range offers a diverse selection of high-pressure compressors featuring various frames and flow rates to meet all market requirements. Engineered for superior quality and performance, these models are manufactured in accordance with international air quality standards. Additionally, NARDI provides a range of optional accessories that allow customers to easily customize their high-pressure compressors for more intuitive operation.

PACIFIC P

The PACIFIC P is part of NARDI’s electrical range and is designed for high-pressure breathing air applications. It features various pumping blocks—with the four-stage version delivering up to 350 L/min (12.4 cfm)—and is fully enclosed in a protective frame, making it an excellent choice for heavy-duty portable use. The unit is also available on a built-in trolley for enhanced mobility.

NARDI offers a range of optional accessories, including an electronic control panel for a fully automatic system and extra whips for filling up to four cylinders simultaneously. The PACIFIC P operates at a maximum pressure of either 225 bar or 330 bar (3263 or 4786 psi), and a dual-pressure version is available that can fill breathing air cylinders at 200 and 300 bar (2900 and 4351 psi)  concurrently.

Key Features

Advanced Pumping Units

• Each compression stage includes a condensate separator to efficiently remove impurities and condensation.
• An automatic condensate discharge system operates silently and is protected by an international patent.

Optimized Lubrication and Component Processing

• Lubrication is primarily provided by splash oiling, with the option to integrate an oil pump.
• Advanced processing techniques extend the life and reliability of each component, ensuring low vibration, minimal noise, reduced power consumption, and high efficiency.

Versatile Filter and Control Options

• The filter unit is available in three versions: PAC1, PAC2, and PAC3.
• Electronic controls enhance safety and independence, and can be further improved with the NARDI AIR CONTROL SYSTEM, which is integrated into the control panel. This system provides real-time air quality data (temperature, O₂, CO, CO₂, humidity, and dew point) and monitors filter cartridge condition.
• Additionally, reliable electric motors—designed and built by Nardi High-Pressure Compressors for each model type—are available, along with optional separation filters for select paintball models and custom voltage options.
• All features comply with DIN EN 12021 and PED directives.

Optional Equipment

• Upgrade to Single-Phase Engine (P23, P27, P30, P35)
• Oil Pump Lubrication (P16, P23, P27)
• Automatic System for Electric Models (Electric Control Panel and Automatic Condensate Drain)
• Soft Start (P23, P27, P30, and P35)
• Oil Alert
• Additional Pressure Sensors (only for Electric models) (unit price per sensor)
• Additional Temperature Sensors (only for Electric models) (unit price per sensor)
• Filtering System (PAC Filter 2)
• Filtering System (PAC Filter 3) Upgrade from PAC Filter 1
• Filtering System (PAC Filter 3) Upgrade from PAC Filter 2
• Double Pressure (Pressure reducer with 2 ea. Filling devices 2-fold with 2 connections at 225 bar/3200 psi and 2 connections at 330 bar/4700 psi – Standard version supplied with 1 filling hose DIN 200 bar and 1 filling hose DIN 300 bar)
• Additional Hose Connections (for a maximum of 2 hose connections : 225 bar/3200 bar or 330 bar/4700 psi)
• Reduction Connection DIN / INT-YOKE only for 225 bar/3200 psi with connection DIN (each piece)

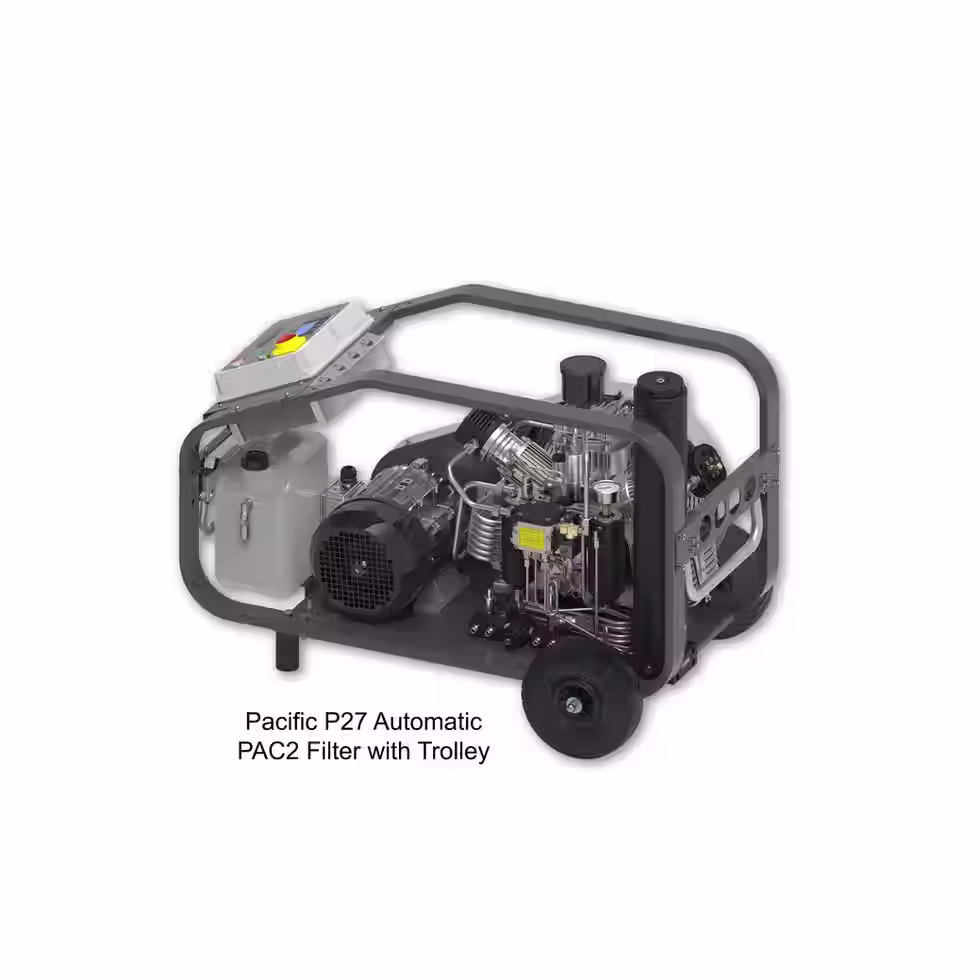

• Trolley (2 wheels and handle)
• Handles (Set of 2)
• Eco-Friendly Condensate Collecting Container/Tank (12L)
• Large Separators

[Click to Download Pacific Catalog]

Request a Quote for More Information

Click the REQUEST A QUOTE button to discuss your specific needs, get detailed pricing information on optional equipment, estimated lead times, and shipping costs. Certain compressors and compressor components are manufactured to order at the Nardi Compressori headquarters in Italy. Once ordered, the Nardi Americas team will notify you with an estimated delivery date.
