Portable Oil-Free Vacuum Systems
SKU VACUUM
Price
$0.00
Engineered for clean, reliable suction wherever you work, NARDI Compressori’s portable vacuum systems are built around our proven oil-free compressors adapted for vacuum duty. The result is a compact, low-maintenance solution with stable performance, quiet operation, and zero risk of oil contamination—ideal for labs, production lines, field service, and mobile setups.
Available with our Silverstone 0.5 HP 12/24VDC, Extreme 0.75 HP 1400 60, Extreme 1.5HP 1400 70, or the Extreme 12/24VDC or 5G (gasoline-powered) pumps, our portable vacuum units generate -100 mbar up to -850 mbar (-3 to -25 inHg) suction with flow rates up to 150 L/min (2.3 CFM).
Why Choose NARDI Vacuum Systems
- Oil-Free & Maintenance-Light – Dry-running design eliminates oil changes and reduces service to simple filter checks.
- Portable, Rugged Build – Lightweight frames, protective shrouds, and vibration-isolated mounts for daily carry and field use.
- Consistent Performance – Smooth vacuum generation with fast pull-down and steady hold at setpoint.
- Multiple Power Options – 120 VAC/60 Hz, 230 VAC/50 Hz, or 12/24 VDC battery. Also available with gasoline engine power.
- Quiet & Clean Exhaust – Suited to benchtops and indoor workspaces.
Typical Applications
- Vacuum fixturing and small-part hold-down
- Composites lay-up, resin infusion, and degassing
- Leak testing and vacuum sampling
- Filtration support and laboratory processes
- Electronics rework, pick-and-place, and handling
- HVAC and field service tasks
- Dental/technical labs and non-patient contact suction

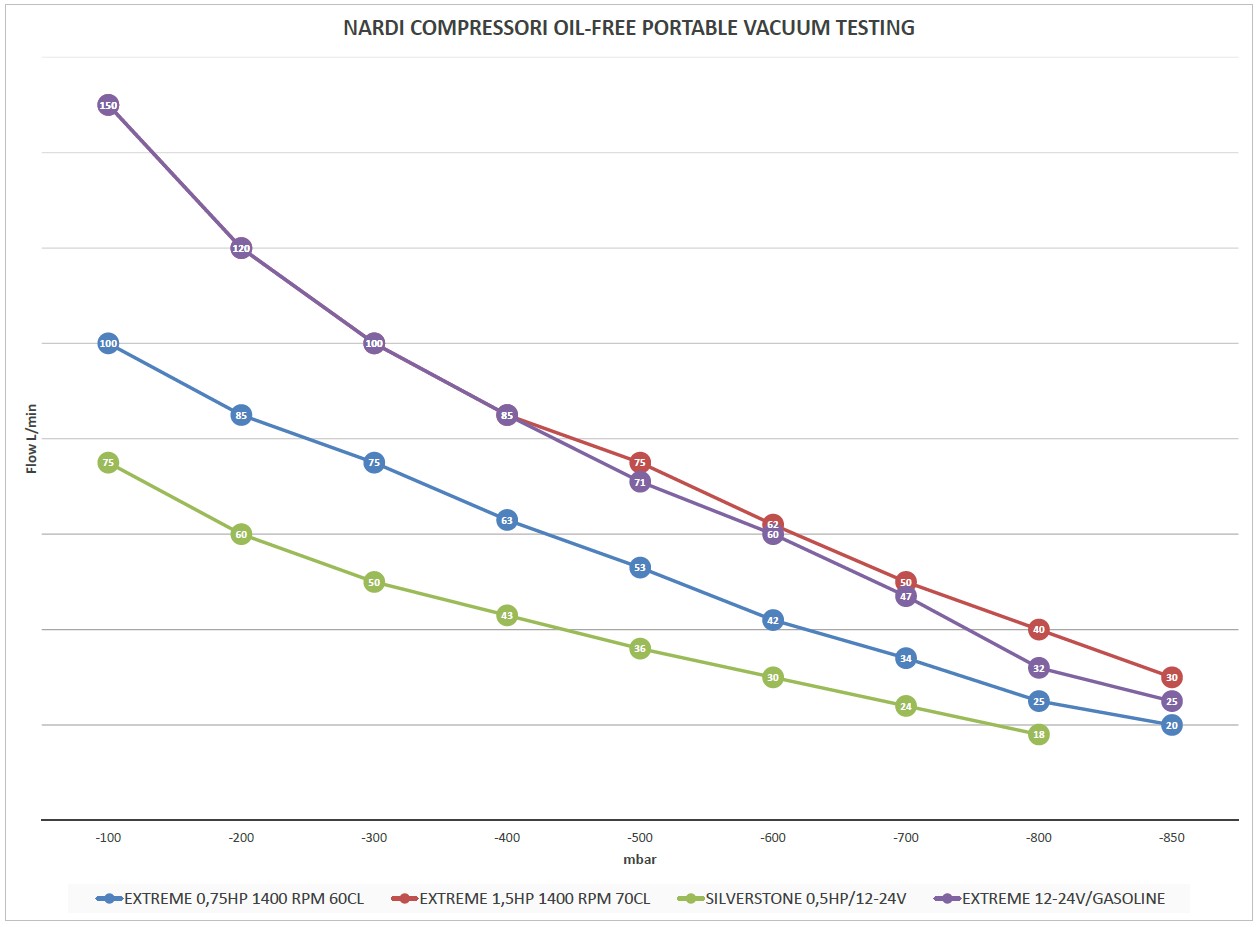

[Download Nardi Oil-Free Portable Vacuum Testing Graph]
Request a Quote for More Information
Click the REQUEST A QUOTE button to discuss your specific needs and get detailed information on available product options. Our vacuum systems are manufactured to order at the Nardi Compressori headquarters in Italy. Once your ordered is placed, the Nardi Americas sales team will (a) contact you if additional information is required to fulfill this order, and/or (b) notify you with an estimated delivery date.
Quantity
Snail trail
Name
SKU
Description
Title
Description
SKU
Title
SKU
Title
Technical Specifications
Model | Dryer | Charging Rate (cfm) | Maximum psi | Intake (cfm) | Stg / Cyl | Power · Phase | Sound (dB) | Weight (lb) | Dimensions (inches) |
|---|---|---|---|---|---|---|---|---|---|
Extreme 2 50L 2hp | -- | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 67 | 103 | 23.2L x 16.9W x 33.5H" |
Extreme 2 50L 1.5hp | -- | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 66 | 99 | 23.2L x 16.9W x 33.5H" |
Extreme 2 50L 0.75hp | -- | -- | 114 | 7 | 2 | .75hp · 1Ø | 66 | 92.5 | 23.2L x 16.9W x 33.5H" |
Extreme 2 25L 2hp | -- | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 67 | 90 | 19.7L x 16.9W x 33.5H" |
Extreme 2 25L 1.5hp | -- | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 66 | 85 | 19.7L x 16.9W x 33.5H" |
Extreme 2 25L 0.75hp | -- | -- | 114 | 7 | 2 | .75hp · 1Ø | 66 | 79.5 | 19.7L x 16.9W x 33.5H" |
Silverstone 12/24V | No | -- | 114 | 4.2 | 1 | 24V (350W) | 74 | 15 | 13L x 5.9W x 9.1W" |
Silverstone 12/24V | No | -- | 114 | 2.1 | 1 | 24V (350W) | 74 | 15 | 13L x 5.9W x 9.1W" |
Extreme 1C 25L 1.5hp | No | -- | 145 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 73 | 21.3L x 23.6W x 32.7H" |
Extreme 1C 25L 2hp 1400 | No | -- | 145 | 12.4 | 2 | 2hp · 1Ø | 73 | 85 | 21.3L x 23.6W x 32.7H" |
Extreme 1C 25L 2hp 2800 | No | -- | 145 | 14.1 | 2 | 2hp · 1Ø | 83 | 80 | 21.3L x 23.6W x 32.7H" |
Extreme MPR 500L 6.0 | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 547 | 76.7L x 36.6W x 43.3H" |
Extreme MPR 500L 9.0 | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 650 | 76.7L x 36.6W x 43.3H" |
Extreme MPR 270L 3.0 | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 287 | 63L x 36.6W x 34.3H" |
Extreme MPR 270L 6.0 | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 425 | 63L x 36.6W x 34.3H" |
Extreme MPR 270L 9.0 | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 530 | 63L x 36.6W x 34.3H" |
Extreme SR 2.0 | D600 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 64 | 173 | 28.0L x 17.3W x 29.9H" |
Extreme 4R 90L 2.0 1Ø | D600 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 167 | 43.3L x 23.2W x 31.9H" |
Extreme 4R 90L 2.5 1Ø | D600 | 6.7 | 114 | 17 | 4 | 2.5hp · 1Ø | 73 | 189 | 43.3L x 23.2W x 31.9H" |
Extreme 4R 90L 3.0 3Ø | D600 | 8.8 | 114 | 21.2 | 4 | 3hp · 3Ø | 73 | 194 | 43.3L x 23.2W x 31.9H" |
Extreme 3R 2.0 | D600 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 112 | 34.7L x 17.3W x 26.8H" |
Extreme 2R 3.0 3Ø | D600 | 21.2 | 114 | 11 | 4 | 3hp · 3Ø | 73 | 169 | 25.2L x 17.7W x 55.1H" |
Extreme 2R 3.0 1Ø | D600 | 17.0 | 114 | 6.7 | 4 | 3hp · 1Ø | 73 | 165 | 25.2L x 17.7W x 55.1H" |
Extreme 2R 2.0 1Ø | D600 | 12.4 | 114 | 4.5 | 2 | 2hp · 1Ø | 73 | 145 | 23L x 16.9W x 55.1H" |
Extreme 2R 2.0 1Ø | D600 | 12.4 | 114 | 4.5 | 2 | 2hp · 1Ø | 73 | 112 | 23L x 16.9W x 32.7H" |
Extreme 2R 3.0 1Ø | D600 | 17.0 | 114 | 6.7 | 4 | 3hp · 1Ø | 73 | 132 | 25.2L x 17.7W x 35H" |
Extreme 2R 3.0 3Ø | D600 | 21.2 | 114 | 8.8 | 4 | 3hp · 3Ø | 73 | 136 | 25.2L x 17.7W x 35H" |
Shooting D 100 | -- | 3.5 | 4700 | -- | 4 | 4.7hp Diesel | 84 | 135 | 32.3L x 14.6W x 19.7H" |
Esprit 3 60 500W 24V | No | -- | 145 | 7.9 | 2 | 24V (500W) | 62 | 32 | 18.5L x 8.7W x 15.8H" |
Esprit 3 60 600W 12V | No | -- | 145 | 7.9 | 2 | 12V (600W) | 62 | 32 | 18.5L x 8.7W x 15.8H" |
Esprit 3 60 500W 12V | No | -- | 145 | 6.4 | 2 | 12V (500W) | 58 | 27 | 18.5L x 8.7W x 15.8H" |
Silverstone 12V | No | -- | 114 | 3.5 | 1 | 12V (450W) | 72 | 15 | 13L x 5.9W x 9.1W" |
Silverstone 12/24V | No | -- | 114 | 4.2 | 1 | 12V (350W) | 74 | 15 | 13L x 5.9W x 9.1W" |
Sany+Air | No | -- | 30 | 3.5 | 1 | .5hp · 1Ø | 72 | 18 | 19.7L x 6.7W x 12.2H" |
Extreme MPD 500L 9hp | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 650 | 76.7L x 36.6W x 43.3H" |
Extreme MPD 500L 6hp | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 547 | 76.7L x 36.6W x 43.3H" |
Extreme MPD 270L 3hp | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 287 | 63L x 36.6W x 34.3H" |
Extreme MPD 270L 6hp | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 425 | 63L x 36.6W x 34.3H" |
Extreme MPD 270L 9hp | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 530 | 63L x 36.6W x 34.3H" |
Extreme 2D 50L 1.5 | Yes | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 106 | 23L x 16.9W x 32.7H" |
Extreme 2D 50L 2.5 | Yes | -- | 114 | 6.7 | 2 | 2.5hp · 1Ø | 73 | 132 | 23L x 16.9W x 32.7H" |
Extreme 2D 50L 2.0 | Yes | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 112 | 23L x 16.9W x 32.7H" |
Extreme 2D 25L 2.0 | Yes | -- | 114 | 4.5 | 2 | 2hp · 1Ø | 72 | 97 | 23L x 16.9W x 26H" |
Extreme 2V 25L 2.0 | No | -- | 114 | 4.5 | 2 | 2hp · 1Ø | 73 | 78 | 18.1L x 16.9W x 26H" |
Extreme 2D 25L 1.5 | Yes | -- | 114 | 3.5 | 2 | 1.5hp · 1Ø | 72 | 91 | 23L x 16.9W x 26H" |
Extreme 2V 25L 1.5 | No | -- | 114 | 3.5 | 2 | 1.5hp · 1Ø | 72 | 73 | 18.1L x 16.9W x 26H" |
Pacific M Nitrox 30 | No | 10.6 | 6000 | -- | 4 | 7.5hp · 1/3Ø | 68 | 674 | 29.5L x 42.5W x 52.8H" |
Pacific MX 60 Nitrox Silenced | No | 21.2 | 6000 | -- | 4 | 15hp · 3Ø | 72 | 1080 | 33.9L x 59.1W x 68.5H" |
Pacific MX 60 Nitrox Open | No | 21.2 | 6000 | -- | 4 | 15hp · 3Ø | 72 | 1080 | 33.9L x 51.2W x 68.5H" |
Extreme MPD 500L 9.0 | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 650 | 76.7L x 36.6W x 43.3H" |
Extreme MPD 500L 6.0 | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 547 | 76.7L x 36.6W x 43.3H" |
Extreme MPV 500L 9.0 | No | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 558 | 76.7L x 25.2W x 43.3H" |
Extreme MPV 500L 6.0 | No | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 485 | 76.7L x 25.2W x 43.3H" |
Extreme SD 50L 2.0 | D400 | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 60 | 210 | 33.5L x 19.7W x 32.2H" |
Extreme SD 50L 1.5 | D400 | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 59 | 199 | 33.5L x 19.7W x 32.2H" |
Extreme SV 50L 2.0 | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 60 | 195 | 28.3L x 19.7W x 32.2H" |
Extreme SV 50L 1.5 | No | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 59 | 183 | 28.3L x 19.7W x 32.2H" |
Extreme MPD 270L 9.0 | D600 | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 530 | 63L x 36.6W x 34.3H" |
Extreme MPD 270L 6.0 | D600 | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 425 | 63L x 36.6W x 34.3H" |
Extreme MPD 270L 3.0 | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 287 | 63L x 36.6W x 34.3H" |
Extreme MPV 270L 9.0 | No | -- | 145 | 63.6 | 12 | 9hp · 3Ø | 75 | 436 | 39.3L x 25.2W x 34.3H" |
Extreme MPV 270L 6.0 | No | -- | 145 | 42.4 | 8 | 6hp · 3Ø | 74 | 364 | 39.3L x 25.2W x 34.3H" |
Extreme MPV 270L 3.0 | No | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 255 | 39.3L x 25.2W x 34.3H" |
Extreme SD 90L 3.0 3Ø | D600 | -- | 145 | 11 | 4 | 3hp · 3Ø | 62 | 369 | 33.8L x 22W x 43.3H" |
Extreme SD 90L 3.0 1Ø | D600 | -- | 145 | 8.5 | 4 | 3hp · 1Ø | 62 | 369 | 33.8L x 22W x 43.3H" |
Extreme SV 90L 3.0 3Ø | No | -- | 145 | 11 | 4 | 3hp · 3Ø | 62 | 342 | 33.8L x 22W x 40.2H" |
Extreme SV 90L 3.0 1Ø | No | -- | 145 | 8.5 | 4 | 3hp · 1Ø | 62 | 342 | 33.8L x 22W x 40.2H" |
Extreme 4D 90L 3.0 3Ø | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 43.3L x 21.3W x 31.9H" |
Extreme 4D 90L 3.0 1Ø | D600 | -- | 145 | 17 | 4 | 3hp · 1Ø | 73 | 167 | 43.3L x 21.3W x 31.9H" |
Extreme 4V 90L 3.0 3Ø | No | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 43.3L x 21.3W x 31.9H" |
Extreme 4V 90L 3.0 1Ø | No | -- | 145 | 17 | 4 | 3hp · 1Ø | 73 | 147 | 43.3L x 21.3W x 31.9H" |
Extreme 2D 90L 3.0 3Ø | D600 | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 77 | 170 | 29.1L x 17.7W x 55.1H" |
Extreme 2D 90L 3.0 1Ø | D600 | -- | 145 | 17 | 4 | 3hp · 1Ø | 77 | 170 | 29.1L x 17.7W x 55.1H" |
Extreme 2V 90L 3.0 3Ø | No | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 152 | 25.1L x 17.7W x 55.1H" |
Extreme 2V 90L 3.0 1Ø | No | -- | 145 | 17 | 4 | 3hp · 1Ø | 73 | 152 | 25.1L x 17.7W x 55.1H" |
Extreme SD 90L 2.5 | D400 | -- | 114 | 17 | 4 | 2.5hp · 1Ø | 62 | 340 | 37.8L x 22.0W x 40.2H" |
Extreme SV 90L 2.5 | No | -- | 114 | 17 | 4 | 2.5hp · 1Ø | 62 | 340 | 37.8L x 22.0W x 40.2H" |
Extreme SD 50L 2.0 | D400 | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 60 | 210 | 33.5L x 19.7W x 32.3H" |
Extreme SD 50L 1.5 | D400 | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 59 | 199 | 33.5L x 19.7W x 32.3H" |
Extreme SV 50L 2.0 | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 60 | 195 | 29.3L x 19.7W x 32.3H" |
Extreme SV 50L 1.5 | No | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 59 | 183 | 29.3L x 19.7W x 32.3H" |
Extreme SD 30L 2.0 | D400 | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 62 | 173 | 28.0L x 17.3W x 29.9H" |
Extreme SD 30L 1.5 | D400 | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 61 | 165 | 28.0L x 17.3W x 29.9H" |
Extreme SV 30L 2.0 | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 62 | 158 | 25.6L x 17.3W x 29.9H" |
Extreme SV 30L 1.5 | No | -- | 114 | 8.5 | 2 | 1.5hp · 1Ø | 61 | 150 | 25.6L x 17.3W x 29.9H" |
Extreme 2V 50L 2hp | No | -- | 114 | 12.4 | 2 | 2hp · 1Ø | 67 | 103 | 22.8L x 16.9W x 38.6H" |
Extreme 2D SIL 25L 2.0 | D400 | -- | 114 | 1.2 | 2 | 2hp · 1Ø | 67 | 106 | 27.6L x 16.9W x 30.7H" |
Extreme 3D 50L 2.0 | D400 | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 112 | 33L x 17.3W x 26.8H" |
Extreme 3D 50L 1.5 | D400 | 3.5 | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 105 | 33L x 17.3W x 26.8H" |
Extreme 3V 50L 2.0 | No | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 95 | 33L x 12.2W x 26.8H" |
Extreme 3V 50L 1.5 | No | 3.5 | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 88 | 33L x 12.2W x 26.8H" |
Extreme 4D 90L 3hp | Yes | 8.8 | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 43.3L x 23.2W x 31.9H" |
Extreme 4D 90L 3hp | Yes | 6.7 | 145 | 17 | 4 | 3hp · 1Ø | 73 | 167 | 43.3L x 23.2W x 31.9H" |
Extreme 4V 90L 3hp | No | 8.8 | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 43.3L x 21.3W x 31.9H" |
Extreme 4V 90L 3hp | No | 6.7 | 145 | 17 | 4 | 3hp · 1Ø | 73 | 147 | 43.3L x 21.3W x 31.9H" |
Extreme 2D 90L 3hp | Yes | 8.8 | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 170 | 29.1L x 17.7W x 55.1H" |
Extreme 2D 90L 3hp | Yes | 6.7 | 145 | 17 | 4 | 3hp · 1Ø | 73 | 170 | 29.1L x 17.7W x 55.1H" |
Extreme 2V 90L 3hp | No | 8.8 | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 152 | 25.2L x 17.7W x 55.1H" |
Extreme 2V 90L 3hp | No | 6.7 | 145 | 17 | 4 | 3hp · 1Ø | 73 | 152 | 25.2L x 17.7W x 55.1H" |
Extreme 3 30L 24V | No | -- | 145 | 8.8 | 2 | 24V (800W) | 72 | 62 | 29.5L x 11.8W x 23.6H" |
Extreme 3 30L 12V | No | -- | 145 | 8.8 | 2 | 12V (800W) | 72 | 62 | 29.5L x 11.8W x 23.6H" |
Extreme 3 7L 12V | No | -- | 145 | 8.8 | 2 | 12V (800W) | 72 | 50 | 16.1L x 15.7W x 15.7H" |
Extreme 3 7L 24V | No | -- | 145 | 8.8 | 2 | 24V (800W) | 72 | 50 | 16.1L x 15.7W x 15.7H" |
Extreme 2D 2.5hp | Yes | 6.7 | 114 | 17 | 2 | 2.5hp · 1Ø | 73 | 132 | 23L x 16.9W x 32.7H" |
Extreme 2V 2.5hp | No | 6.7 | 114 | 17 | 2 | 2.5hp · 1Ø | 73 | 115 | 18.1L x 16.9W x 32.7H" |
Extreme 2D 2.0hp | Yes | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 112 | 23L x 16.9W x 32.7H" |
Extreme 2V 2.0hp | No | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 73 | 94 | 18.1L x 16.9W x 32.7H" |
Extreme 2D 1.5hp | Yes | 3.5 | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 106 | 23L x 16.9W x 32.7H" |
Extreme 2V 1.5hp | No | 3.5 | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 87 | 18.1L x 16.9W x 32.7H" |
Extreme 2V 1.5hp | No | 3.5 | 114 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 73 | 18.1L x 16.9W x 32.7H" |
Extreme 2V 2hp | No | 4.5 | 114 | 12.4 | 2 | 2hp · 1Ø | 78 | 78 | 18.1L x 16.9W x 32.7H" |
Extreme 5G Hookah 70 | No | -- | 145 | 13.4 | 2 | 3hp 70mm Gas | 82 | 59 | 16.5L x 17.7W x 17.7H" |
Extreme 5G Hookah 60 | No | -- | 145 | 9.5 | 2 | 3hp 60mm Gas | 85 | 56 | 16.5L x 17.7W x 17.7H" |
Extreme 3 Hookah 24V | No | -- | 145 | 9.9 | 2 | 24V (800W) | 72 | 50 | 16.1L x 15.7W x 17.3H" |
Extreme 3 Hookah 12V | No | -- | 145 | 9.2 | 2 | 12V (800W) | 72 | 50 | 16.1L x 15.7W x 17.3H" |
Extreme 3T Hookah 2hp | No | -- | 145 | 12.4 | 2 | 2hp · 1Ø | 73 | 60 | 22.8L x 12.2W x 15.4H" |
Extreme 3T Hookah 1.5hp | No | -- | 145 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 51 | 20.8L x 12.2W x 15.4H" |
Esprit 3T Hookah 60 24V 500W | No | -- | 145 | 7.9 | 2 | 24V (500W) | 62 | 32 | 17.7L x 9.4W x 11W" |
Esprit 3T Hookah 60 12V 600W | No | -- | 145 | 7.9 | 2 | 12V (600W) | 62 | 32 | 17.7L x 9.4W x 11W" |
Esprit 3T Hookah 60 12V 500W | No | -- | 145 | 6.4 | 2 | 12V (500W) | 58 | 27 | 17.7L x 9.4W x 11W" |
Esprit 3T Hookah 60/2 | No | -- | 145 | 7.4 | 2 | .75hp · 1Ø | 62 | 29 | 17.7L x 9.4W x 11W" |
Pacific MX 85 | No | 30 | 4786 | -- | 4 | 25hp · 3Ø | 75 | 1367 | 33.9L x 61.4W x 68.1H" |
Pacific MX 68 | No | 24 | 4786 | -- | 4 | 20hp · 3Ø | 75 | 1146 | 33.9L x 61.4W x 68.1H" |
Pacific MX 60/4 | No | 21.2 | 4786 | -- | 4 | 15hp · 3Ø | 72 | 1146 | 33.9L x 61.4W x 68.1H" |
Pacific MX 60 | No | 21.2 | 4786 | -- | 3 | 15hp · 3Ø | 75 | 1102 | 33.9L x 61.4W x 68.1H" |
Pacific MX 50 | No | 17.7 | 4786 | -- | 3 | 15hp · 3Ø | 72 | 1014 | 33.9L x 61.4W x 68.1H" |
Pacific CX 85 | -- | 30 | 4786 | -- | 3 | 25hp · 3Ø | 77 | 1256 | 33L x 29.5W x 55.9H" |
Pacific CX 68 | -- | 24 | 4786 | -- | 3 | 20hp · 3Ø | 75 | 1036 | 33L x 29.5W x 55.9H" |
Pacific CX 60 | -- | 21.2 | 4786 | -- | 3 | 15hp · 3Ø | 73 | 926 | 33L x 29.5W x 55.9H" |
Pacific CX 50 | -- | 17.7 | 4786 | -- | 3 | 15hp · 3Ø | 72 | 882 | 33L x 29.5W x 55.9H" |
Pacific M 30 Nitrox | No | 10.6 | 4786 | -- | 4 | 7.5hp | 68 | 674 | 46.5L x 42.5W x 52.8H" |
Pacific PG 35 | No | 12.4 | 4786 | -- | 4 | 10hp Gas | 81 | 282 | 46.5L x 21.3W x 27.1H" |
Pacific PG 30 | No | 10.6 | 4786 | -- | 3 | 10hp Gas | 79 | 271 | 46.5L x 21.3W x 27.1H" |
Pacific PG 27 | No | 9.5 | 4786 | -- | 3 | 9hp Gas | 80 | 249 | 46.5L x 21.3W x 27.1H" |
Pacific PG 23 | No | 8.1 | 4786 | -- | 3 | 9hp Gas | 79 | 249 | 46.5L x 21.3W x 27.1H" |
Pacific P 35 | No | 12.4 | 4786 | -- | 4 | 10hp · 3Ø | 78 | 313 | 46.4L x 21.3W x 27.2H" |
Pacific P 30 | No | 10.6 | 4786 | -- | 3 | 7.5hp · 3Ø | 75 | 302 | 46.4L x 21.3W x 27.2H" |
Pacific P 27 | No | 9.5 | 4786 | -- | 3 | 7.5hp · 3Ø | 76 | 302 | 46.4L x 21.3W x 27.2H" |
Pacific P 23 | No | 8.1 | 4786 | -- | 3 | 5.5hp · 3Ø | 75 | 300 | 46.4L x 21.3W x 27.2H" |
Pacific P 16 | No | 5.6 | 4786 | -- | 3 | 4hp · 1Ø | 74 | 300 | 46.4L x 21.3W x 27.2H" |
CNG 3.8 | No | 8.2 | 5076 | 50–500 mbar | 3 | 7.5hp | 65 | 510 | 29.5L x 33.5W x 43.3H" |
CNG 2.8 | No | 6 | 5076 | 50–500 mbar | 3 | 5.5hp | 65 | 475 | 29.5L x 33.5W x 43.3H" |
CNG 1.0 | No | 2.1 | 5076 | 50–500 mbar | 3 | 4hp | 62 | 450 | 29.5L x 33.5W x 43.3H" |
CNG 5.0 | No | 10.6 | 5076 | 50–650 mbar | 3 | 10hp | 65 | 610 | 31.5L x 43.3W x 55.1H" |
Pacific 30 Block | -- | 10.6 | 4786 | -- | 4 | -- | -- | -- | |
Pacific 27 Block | -- | 9.5 | 4786 | -- | 4 | -- | -- | -- | |
Pacific 23 Block | -- | 8.1 | 4786 | -- | 4 | -- | -- | -- | |
Pacific 16 Block | -- | 5.6 | 4786 | -- | 4 | -- | -- | -- | |
Atlantic 100 Block | No | 3.5 | 4786 | -- | 4 | -- | -- | -- | |
Atlantic 60 Block | No | 2.1 | 4786 | -- | 4 | -- | -- | -- | |
Extreme 4 3HP Ph3 60Hz | No | -- | 145 | 25.5 | 4 | 3hp · 3Ø | 73 | 73 | 25.2L x 11W x 8.3H" |
Extreme 4 3HP Ph3 50Hz | No | -- | 145 | 21.2 | 4 | 3hp · 3Ø | 73 | 73 | 25.2L x 11W x 8.3H" |
Extreme 4 3HP 60Hz | No | -- | 145 | 25.5 | 4 | 3hp · 1Ø | 73 | 73 | 25.2L x 11W x 8.3H" |
Extreme 4 3HP 50Hz | No | -- | 145 | 21.2 | 4 | 3hp · 1Ø | 73 | 73 | 25.2L x 11W x 8.3H" |
Extreme 4 2.5HP 60Hz | No | -- | 145 | 20 | 4 | 2.5hp · 1Ø | 73 | 66 | 24L x 11W x 8.3H" |
Extreme 4 2.5HP 50Hz | No | -- | 145 | 17 | 4 | 2.5hp · 1Ø | 73 | 66 | 24L x 11W x 8.3H" |
Extreme 70 2HP 50Hz | No | -- | 145 | 12.4 | 2 | 2hp · 3Ø | 73 | 44 | 16.9L x 11W x 11.4H" |
Extreme 70 2HP 60Hz | No | -- | 145 | 14.8 | 2 | 2hp · 3Ø | 73 | 44 | 16.9L x 11W x 11.4H" |
Extreme 70 2HP 60Hz | No | -- | 145 | 14.8 | 2 | 2hp · 3Ø | 73 | 44 | 16.9L x 11W x 11.4H" |
Extreme 70 2HP 50Hz | No | -- | 145 | 12.4 | 2 | 2hp · 3Ø | 73 | 44 | 16.9L x 11W x 11.4H" |
Extreme 60 1.5HP 60Hz | No | -- | 145 | 10.1 | 2 | 1.5hp · 1Ø | 72 | 36 | 15.3L x 15.0W x 10.2H" |
Extreme 60 1.5HP 50Hz | No | -- | 145 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 36 | 15.3L x 15.0W x 10.2H" |
Esprit 60/2 60Hz | No | -- | 114 | 8.8 | 2 | .75hp · 1Ø | 55 | 17 | 11.4L x 8.7W x 5.5H" |
Esprit 60/2 50Hz | No | -- | 114 | 7.4 | 2 | .75hp · 1Ø | 55 | 17 | 11.4L x 8.7W x 5.5H" |
Esprit 60/4 60Hz | No | -- | 114 | 4.4 | 2 | .75hp · 1Ø | 48 | 17 | 11.4L x 8.7W x 5.5H" |
Esprit 60/4 50Hz | No | -- | 114 | 3.7 | 2 | .75hp · 1Ø | 48 | 17 | 11.4L x 8.7W x 5.5H" |
Super Extreme 1 20L 30bar | No | -- | 435 | 4.6 | 2 | 2.2hp · 1Ø | 72 | 102 | 21.3L x 23.6W x 32.7H" |
Super Extreme 1 TN 18L | No | -- | 435 | 4.6 | 2 | 2.2hp · 1Ø | 72 | 75 | 26.4L x 25.6W x 18.9H" |
Super Extreme TN 18L 30 bar | No | -- | 435 | 4.6 | 2 | 2.2hp · 1Ø | 72 | 75 | 24.4L x 19.7W x 15.7H" |
Extreme 3T 2hp 1400 | No | -- | 145 | 12.4 | 2 | 2hp · 1Ø | 73 | 60 | 22.8L x 12.2W x 15.4H" |
Extreme 3T 5L 2hp | No | -- | 145 | 14.1 | 2 | 2hp · 1Ø | 82 | 58 | 20.9L x 12.2W x 15.4H" |
Extreme 3T 5L 1.5hp 15 bar | No | -- | 217 | 4 | 2 | 1.5hp · 1Ø | 72 | 51 | 20.9L x 12.2W x 15.4H" |
Extreme 3T 5L 1.5hp | No | -- | 145 | 8.5 | 2 | 1.5hp · 1Ø | 72 | 51 | 20.9L x 12.2W x 15.4H" |
Extreme 3T 5L 0.75hp | No | -- | 145 | 7 | 2 | .75hp · 1Ø | 72 | 45 | 20.9L x 12.2W x 15.4H" |
Esprit Sil. 5L 60/2 | No | -- | 145 | 7.4 | 2 | .75hp · 1Ø | 55 | 44.1 | 16.1L x 9.8W x 15.4H" |
Esprit Sil. 5L 60/4 | No | -- | 145 | 3.7 | 2 | .75hp · 1Ø | 48 | 44.1 | 16.1L x 9.8W x 15.4H" |
Esprit 1 10L 60/2 | No | -- | 145 | 7.4 | 2 | .75hp · 1Ø | 62 | 37.5 | 16.1L x 13.8W x 26.8H" |
Esprit 1 10L 60/4 | No | -- | 145 | 8.8 | 2 | .75hp · 1Ø | 63 | 37.5 | 16.1L x 13.8W x 26.8H" |
Esprit 3 15L 60/2 | No | -- | 145 | 7.4 | 2 | .75hp · 1Ø | 62 | 39.7 | 18.5L x 8.7W x 15.7H" |
Esprit 3 15L 60/4 | No | -- | 145 | 3.7 | 2 | .75hp · 1Ø | 52 | 39.7 | 18.5L x 8.7W x 15.7H" |
Silverstone 2 450W 24V | No | -- | 114 | 4.2 | 1 | 24V (350W) | 74 | 22 | 16.1L x 5.9W x 15.4H" |
Silverstone 2 350W 12V | No | -- | 114 | 2.1 | 1 | 12V (350W) | 74 | 22 | 16.1L x 5.9W x 15.4H" |
Silverstone 2 450W 12V | No | -- | 114 | 3.5 | 1 | 12V (450W) | 72 | 22 | 16.1L x 5.9W x 15.4H" |
Esprit 3T 60 500W 12V | No | -- | 145 | 6.4 | 2 | 12V (500W) | 58 | 27 | 17.7L x 9.5W x 11H" |
Esprit 3T 60 600W 12V | No | -- | 145 | 7.9 | 2 | 12V (600W) | 62 | 32 | 17.7L x 9.5W x 11H" |
Esprit 3T 60 500W 24V | No | -- | 145 | 7.9 | 2 | 24V (500W) | 62 | 32 | 17.7L x 9.5W x 11H" |
Esprit 3T 60/4 | No | -- | 145 | 7.4 | 2 | .75hp · 1Ø | 62 | 29 | 17.7L x 9.4W x 11H" |
Esprit 3T 60/2 | No | -- | 145 | 3.7 | 2 | .75hp · 1Ø | 52 | 29 | 17.7L x 9.4W x 11H" |
Silverstone 2 | No | -- | 114 | 3.5 | 1 | .5hp · 1Ø | 72 | 22 | 16.1L x 5.9W x 15.4H" |
Esprit 2V 25L 60/2 25L | No | 1.8 | 114 | 7.4 | 2 | .75hp · 1Ø | 62 | 51 | 16.1L x 17.7W x 20.5H" |
Esprit 2V 25L 60/4 25L | No | 0.7 | 114 | 3.7 | 2 | .75hp · 1Ø | 52 | 51 | 16.1L x 17.7W x 20.5H" |
Extreme 2V 25L 1.5 | No | 3.5 | 114 | 8.5 | 2 | 1.5hp· 1Ø | 72 | 73 | 18.1L x 16.9W x 32.7H" |
Shooting G 100 | No | 3.5 | 4700 | -- | 4 | 6hp Gas | 84 | 93 | 29.9L x 16.1W x 16.1H" |
Shooting P 100/3 | No | 3.5 | 4700 | -- | 4 | 4hp · 3Ø | 79 | 93 | 22.8L x 16.1W x 16.1H" |
Shooting P 100/1 | No | 3.5 | 4700 | -- | 4 | 3hp · 1Ø | 79 | 93 | 22.8L x 16.1W x 16.1H" |
Shooting P 60/1 | No | 2.1 | 4700 | -- | 4 | 2hp · 1Ø | 76 | 87 | 22.8L x 16.1W x 16.1H" |
Extreme Robin 70 6hp | No | -- | 217 | 12.6 | 2 | 6hp Gas | 85 | 39 | 21.7L x 11.4W x 13H" |
Extreme Robin 60 6hp | No | -- | 145 | 19 | 2 | 6hp Gas | 85 | 39 | 21.7L x 11.4W x 13H" |
Extreme Robin 70 3hp | No | -- | 145 | 13.4 | 2 | 3hp Gas | 85 | 29 | 17.7L x 9.4W x 11H" |
Extreme Robin 60 3hp | No | -- | 145 | 9.5 | 2 | 3hp Gas | 85 | 29 | 17.7L x 9.4W x 11H" |
Related Products
Name
Name
Name
bottom of page
