Choosing the right compressor can be confusing—especially with so many different names and models across the Nardi Compressori product range. Each line is designed with specific uses in mind, but for new customers, those differences are not always obvious. This blog series is designed to guide you through the unique features of each Nardi compressor family—explaining where they fit, the pressures they reach, the flow rates they deliver, and the options available. By the end of this series, we hope you’ll have a clear sense of which Nardi compressor is the best fit for your needs.
The Atlantic series is Nardi’s most compact family of high-pressure breathing air compressors. Despite their small footprint, Atlantics deliver big performance, with working pressures up to 4,700 psi (330 bar). Built around a 4-stage block, they are designed to provide clean, breathable air that meets DIN EN 12021 standards.
Originally developed for breathing air applications—such as scuba diving, firefighting, and paintball—the Atlantic series is also suitable for industrial environments that require portable high-pressure compressed air.
Versions Available: Electric, Gasoline, and Diesel
Nardi offers the Atlantic line in several drive options, so you can choose the version that fits your environment and mobility needs:
Electric (single- or three-phase, available in 110V, 230V, 400V and 440V)
Gasoline (Rato or Honda engine options)
Diesel (durable field-ready power)
Key Specifications at a Glance
Flow Rates
≈ 2.1 CFM (60 L/min)
≈ 3.5 CFM (100 L/min)
Operating Pressures
≈ 3,200 psi (225 bar)
≈ 4,700 psi (330 bar)
Drive Options & Power Ratings
Electric: 2.5–4.0 hp (1.85–3.0 kW)
Gasoline (Rato or Honda engine): ≈ 5.6 hp (4.2 kW)
Diesel: ≈ 4.7 hp (3.5 kW)
Purification
Standard ATL filtration system (upgrade options available)
Dimensions (L × W × H)
Electric Models: 22.8″ × 16.1″ × 16.1″ (58 × 41 × 41 cm)
Gasoline Models: 30.3″ × 16.1″ × 16.1″ (77 × 41 × 41 cm)
Diesel Models: 32.3″ × 14.6″ × 19.7″ (82 × 37 × 50 cm)
Standard Equipment
Hour Meter
Maintaining Valve
No-Return Valve

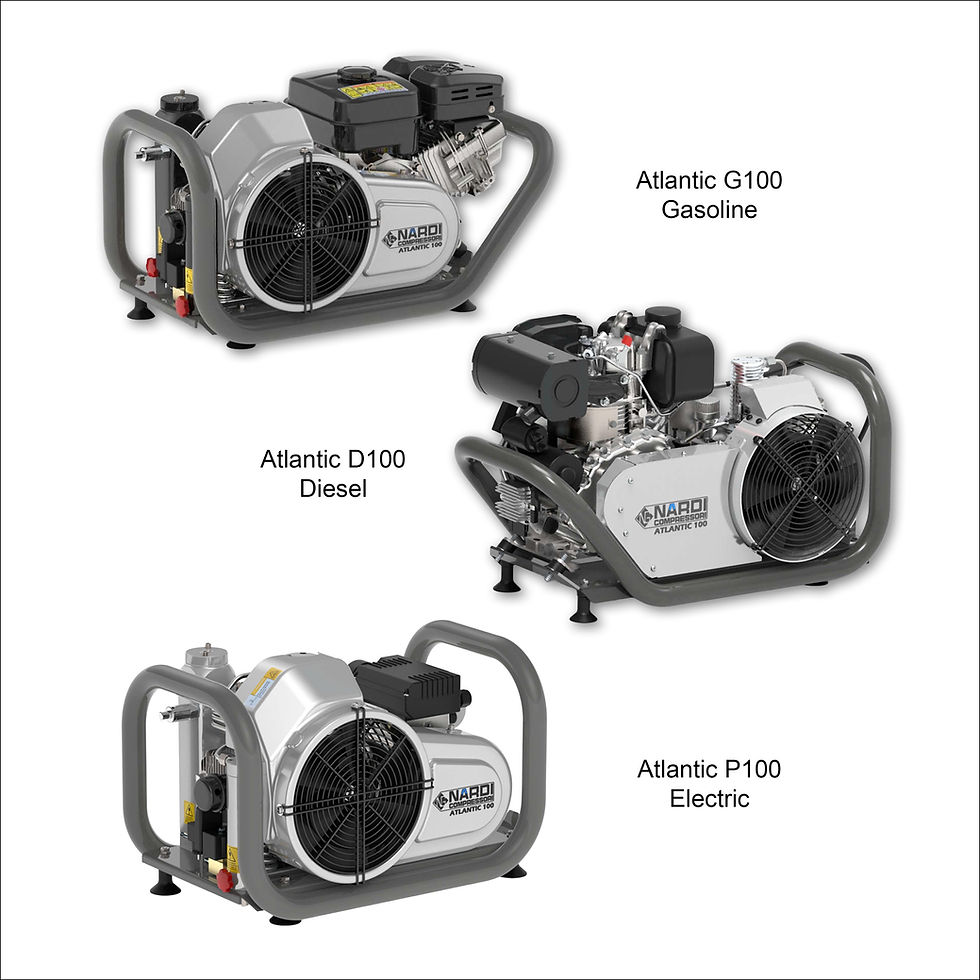

Atlantic Compressor Models
Electric Power
Atlantic P60/1: ≈ 2.1 cfm (60 L/min), 2.5 hp (1.85 kW), single-phase
Atlantic P100/1: ≈ 3.5 cfm (100 L/min), 3.0 hp (2.2 kW), single-phase (230V or 110V)
Atlantic P100/3: ≈ 3.5 cfm (100 L/min), 4.0 hp (3.0 kW), three-phase
Gasoline Power
Atlantic G100 Rato: ≈ 3.5 cfm (100 L/min), 5.6 hp (4.2 kW) Rato engine
Atlantic G100 Honda: ≈ 3.5 cfm (100 L/min), 5.6 hp (4.2 kW) Honda engine
Diesel Power
Atlantic D100: ≈ 3.5 cfm (100 L/min), 4.7 hp (3.5 kW) diesel engine
Options & Accessories
The Atlantic can be customized with a wide range of factory-supplied options:
Portable trolley or folding trolley
Filling hose holder
Automatic condensate drain (electric or gasoline models)
Double pressure configuration (225 bar / 3,200 psi and 330 bar / 4,700 psi)
Connection type only for 225 bar/3200 psi: DIN or INT (YOKE) or DIN with reduction INT (YOKE). Length of all filling hoses = 3.3 ft (1 m)
Eco-friendly condensate collection tank (5L)
Additional hose connections (up to 2)
Final pressure switch with auto-stop
Hour meter
Double purification system
Why Choose the Atlantic?
The Atlantic is the go-to solution for users who need a lightweight, portable, and dependable compressor that delivers certified breathing air. It is ideal for:
Scuba diving operations
Firefighting teams
Paintball fields (see the Shooting 100 Series)
Industrial field use
Mobile applications where portability and power flexibility matter
Compact yet powerful, the Atlantic delivers big performance in a small package—making it one of Nardi’s most versatile breathing air systems.
Learn More & Shop Atlantic Compressors
Paintball & PCP Versions
More Information
For additional information on this or any other Nardi product, contact the Nardi Americas staff at info@nardiamericas.com or call +1 (954) 344-2420.
